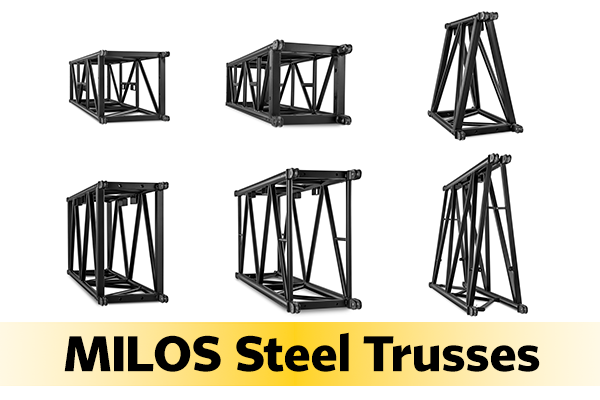

Another series of MILOS truss that we would like to introduce are our "Steel Trusses," whose huge strength enables them to bear enormous loads safely and effectively.
The MILOS range of steel products consists of steel trusses, towers, and "base sections" that are characterized by an optimized weight-to-strength ratio. Thanks to the use of very special steel alloys, MILOS steel trusses are able to handle an average of 2.5 times the load at only twice the weight compared to aluminium systems with the same dimensions and the same deflection.
Therefore, they have a huge potential to be used not only for "mega concerts", but also wherever there are enormous requirements for strength, high load capacity and, last but not least, safety.
The advantages of the entire range of steel trusses also include optimised dimensions for truck loading, "Integrated Forklift Pick Up Points" for forklift vehicles, pinned connectors for increased safety, and end frames are supplied with side connectivity options.
S-M530 Quatro Steel Truss
The 530 x 530 mm MILOS 530 Quatro high-strength steel tower section is made from special, high strength steel alloys and is designed for huge ground supports and roof systems with high loads.
- Use of bespoke, high-strength steels
- End braces with 22mm holes for lateral connections
- Orientation-free connector arrangement for ease of use
S-M780 Quatro Steel Truss
The 780 x 780 mm MILOS 780 Quatro ultra-strength steel tower truss is made from special, high strength steel alloys and is designed for extreme ground supports or roof systems.
- Integrated forklift pick up points
- Optimised weight to strength ratio
- Pinned connectors for increased strength
S-M1010 Rectangular Steel Truss
The 1010 x 580 mm MILOS 1010 Rectangular ultra-strength steel span section is made from special, ultra-high strength steel alloys with 2.7 times higher strength against bending compared to an aluminium truss.
- Use of bespoke, high-strength steels
- Pinned connectors for increased strength
- Greatly increases load capacity when used in place of an aluminium truss with similar dimensions
S-M1010 Trio Steel Truss
The 1010 x 580 mm MILOS 1010 Trio ultra-strength steel truss is designed to thread the diagonals of the 1450 rectangular steel truss as a sub-carrier.
- Optimised weight to strength ratio
- Can be inserted as cross truss into the larger S-M1450 steel truss
- Optimised webbing pattern for ease of use when assembling cross trusses
S-M1450 Rectangular Steel Truss
The 1450 x 770 mm MILOS 1450 Rectangular ultra-strength truss is made from special, ultra-high-strength steel alloys and handles 2.2 times more load than an aluminium truss with similar dimensions at just double the weight.
- Integrated forklift pick up points
- Tubes on the side to assist in climbing
- Webbing pattern allows the insertion of cross trusses
S-M2000 Folding Steel Truss
The 2000 x 770 mm MILOS 2000 Folding ultra-strength steel truss saves you money by requiring less storage and transport space due to the folding design of its lateral diagonals.
- Integrated forklift pick up points
- Pinned connectors for increased strength
- Orientation-free connector arrangement for ease of use
You can find out more about our range of steel trusses here:
https://www.milossystems.com/products/steel-truss
MILOS. A 25+ years young brand, with fast, flexible, and affordable quality solutions. “MILOS. Works Better“.
