Hanging-Plate-QTB

Hanging-Plate-QTB

Maximum headroom Hanging Plate QTB for M290 and M390 series truss

Technical details

Code: Hanging-Plate-QTB

Width: 289 mm

Height: 292 mm

Max. SWL: 1000 kg (DGUV 17 / BGV C1)

Self Weight: 3.5 kg

Contact Us

UK

+44 (0)1945 410700

USA

+1 800 411 0065

DE

+49 251 2024014-0

EU

+420 416 810 800

Get your quote

Left arrow

Right arrow

Detailed information

Basic info Download section

Basic info

Description

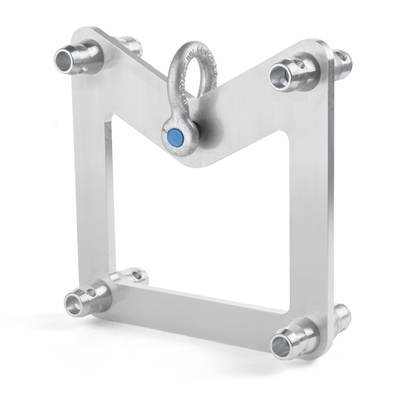

The new MILOS Hanging Plate QTB allows for the horizontal hanging of MILOS 290 and 390 series quatro truss at height. Thanks to its unique "drop hook" design, you experience no loss of headroom so your truss can be lifted as high as possible.

The M290, M390 comes in three connection system versions – B, F, and U – for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.

Key benefits

"Drop Hook" design for maximum headroom
Complies with DGUV 17 / DGUV ref. 215-313 for overhead loads (double safe working load co-efficients)
CE certified in accordance with machine directive 2006/42/EC
Compatible with MILOS 290 and 390 series truss

Download PDF

Leaflet Hanging plate

Leaflet Hanging plate
