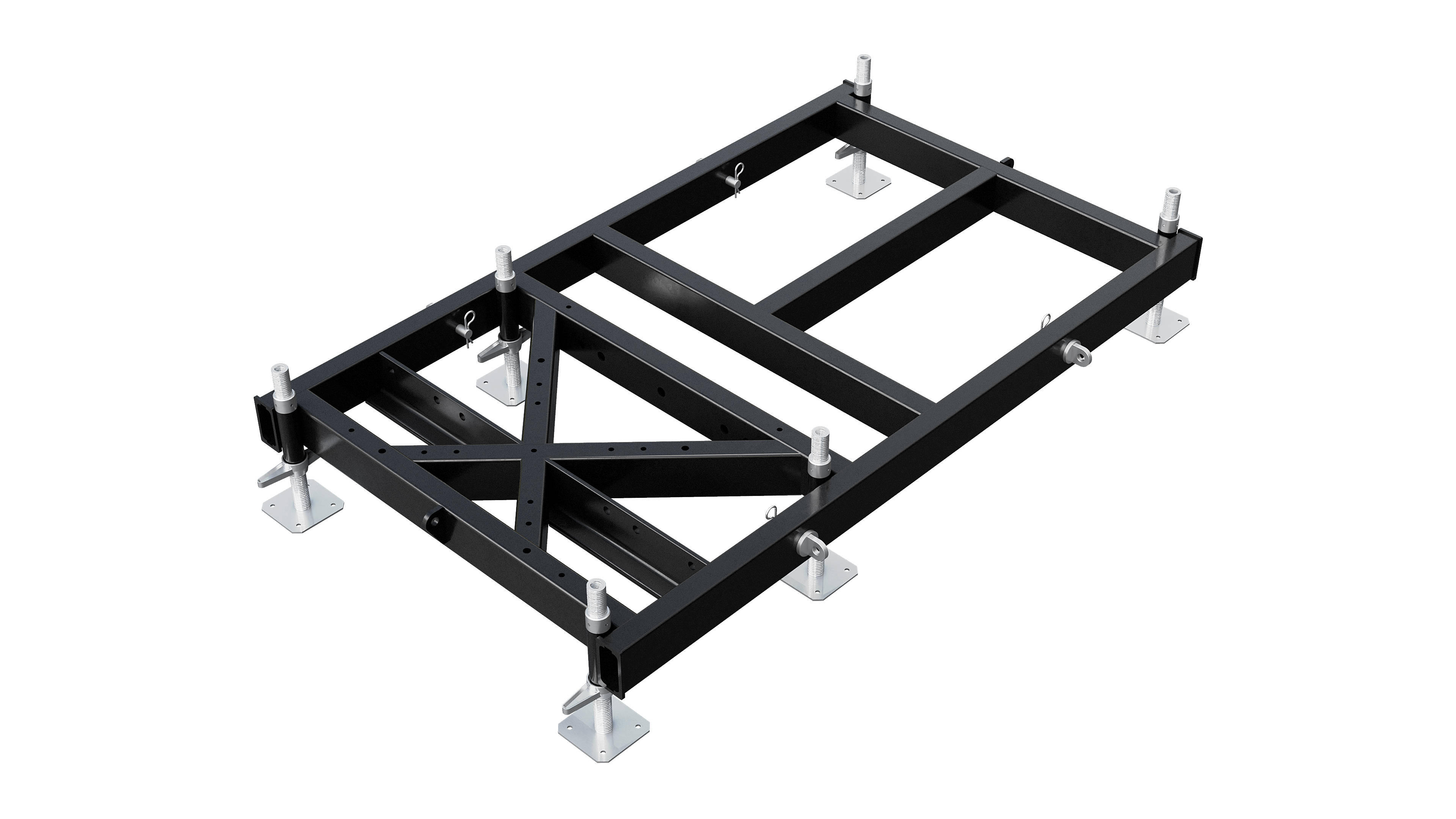

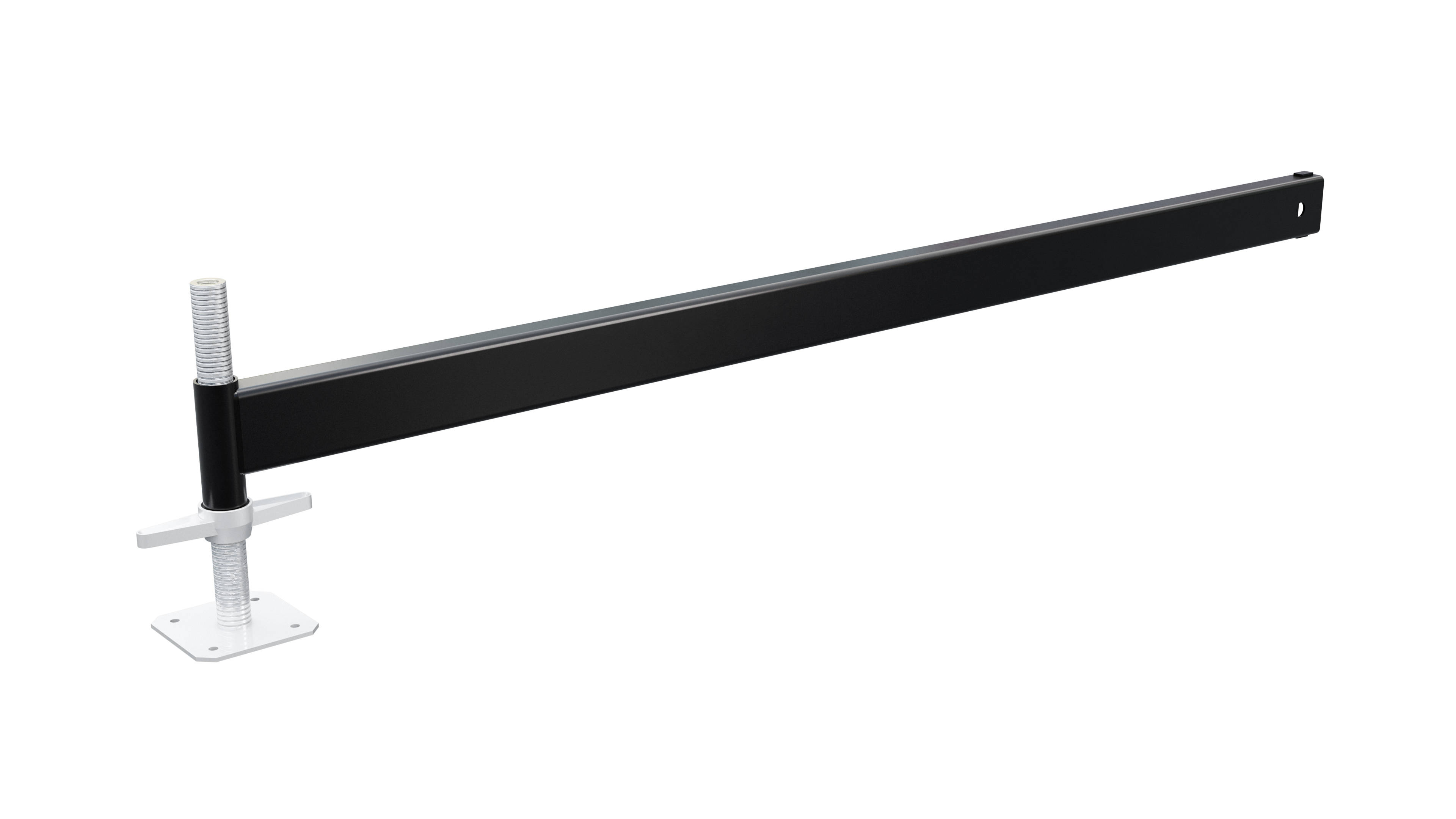

Thanks to the fact that the MILOS MT-ICON PA Tower's Base is made of durable STEEL MT-ICON Base, it boasts unwavering robustness, high strength and stability, which can be further enhanced by adding the MT-Icon Base Steel Outrigger for a larger footprint.
The erecting helper makes it easy to assemble. Part of the Steel MT-ICON Base is a platform on which Ballast can be placed as an IBC tank or concrete blocks. This ensures that the ballast is part of the base and is permanently active.

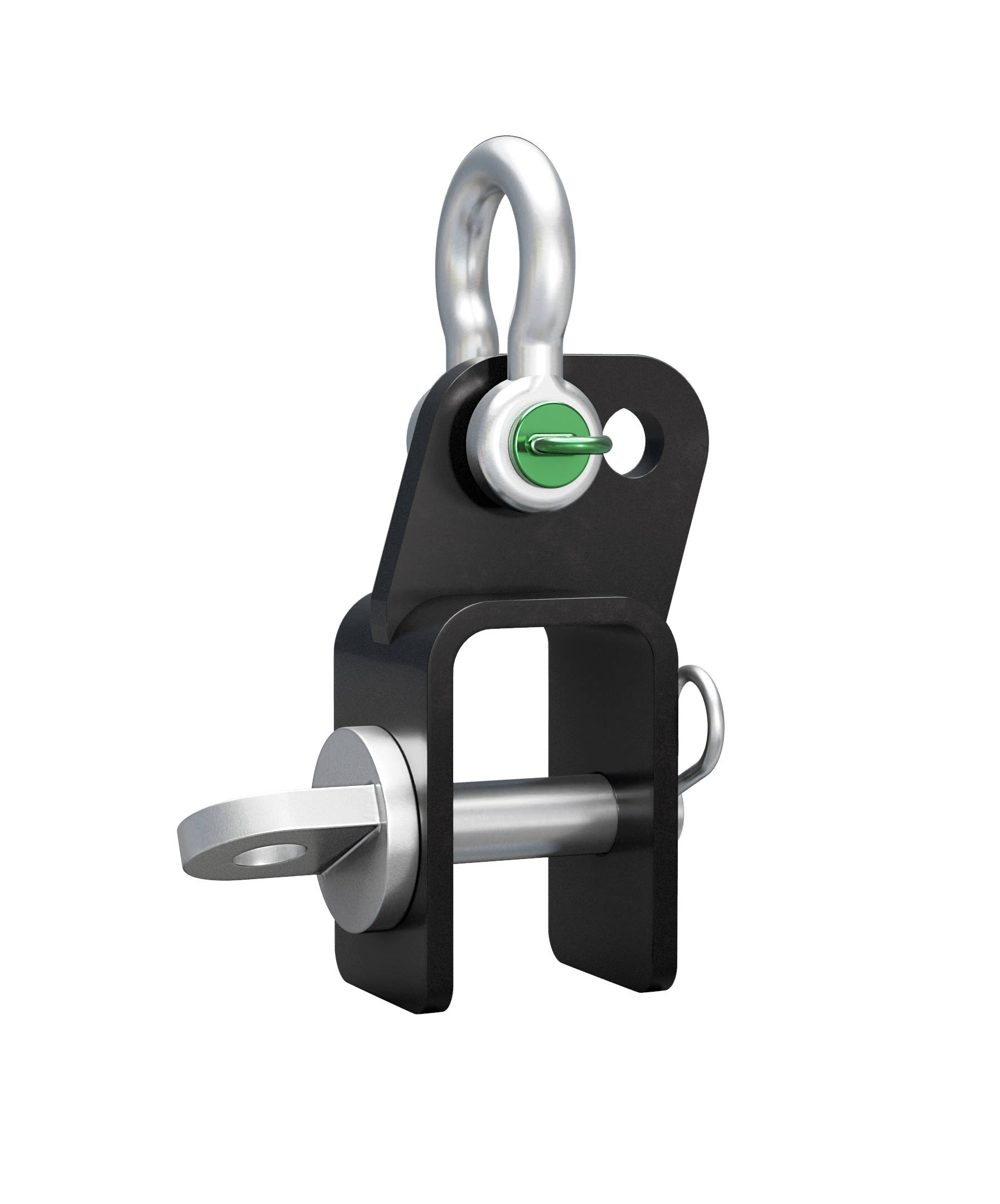

The base has practical attachment points for wire ropes, manual chain hoist, electric motors and tower erector attachment points.
When building on uneven terrain, spindles will help you to level the base and thus get the whole bond to a perfectly horizontal position.

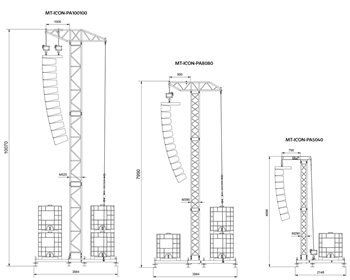

Available in three versions:
MT-ICON-PA5040 with a height of up to 5m, loading capacity 400Kg and assembled from M290 Truss.
MT-ICON-PA8080 with a height of up to 8m, loading capacity 800Kg and assembled from M390 Heavy duty Truss
MT-ICON-PA100100 with a height of up to 10m, loading capacity 1000Kg and assembled from M520 Truss.
• Robust and stable due to steel MT-Icon Base
• Ensures effective deployment of ballast
• Elevated hanging points
• Multiple attachment points on base
• Compact footprint
• Manual or electric hoist can be used on head-section or icon base connection
• Erecting helper available
• Spindle feet with large contact surface
• Quick & Easy assembly

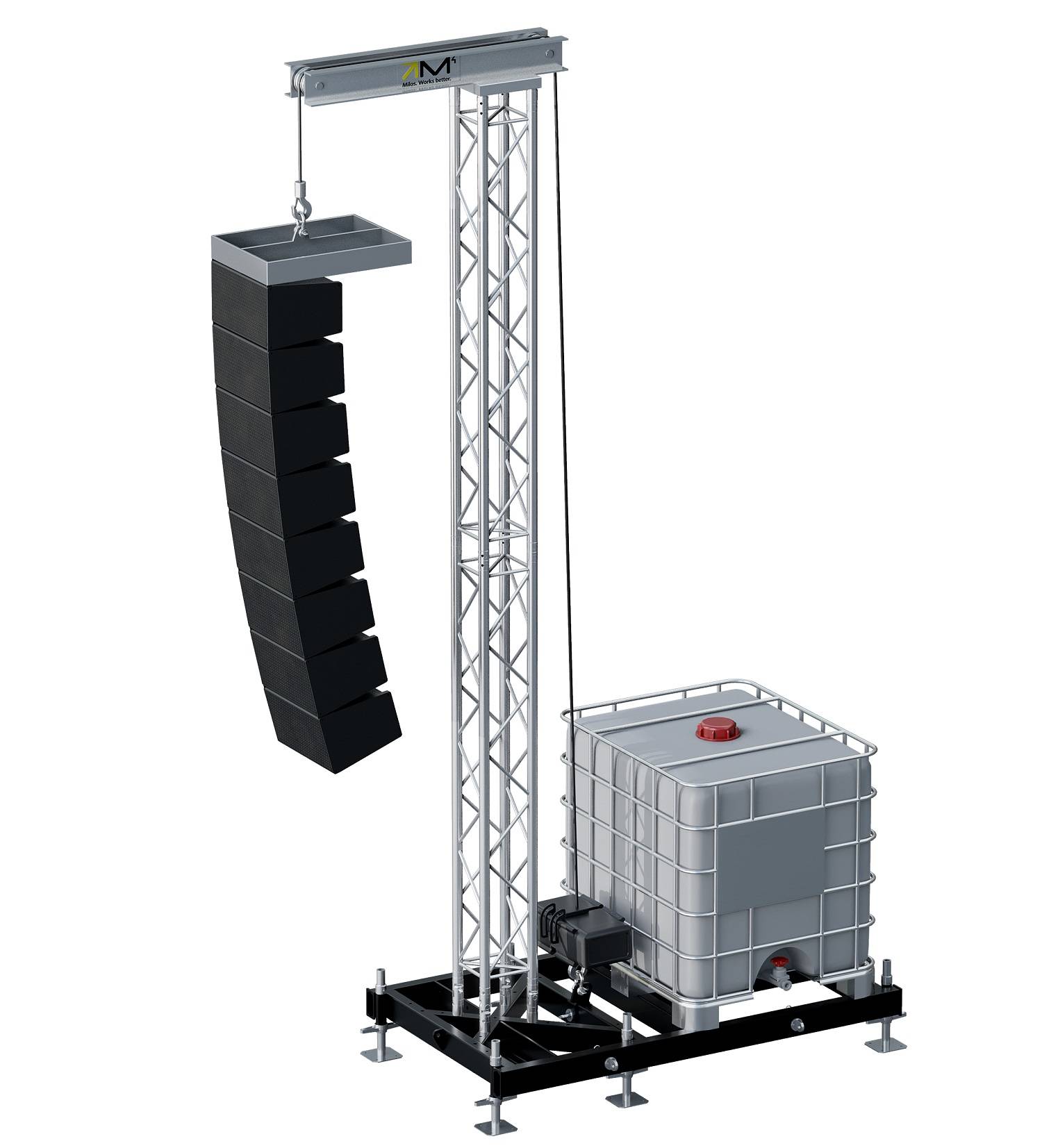

Example of use:
