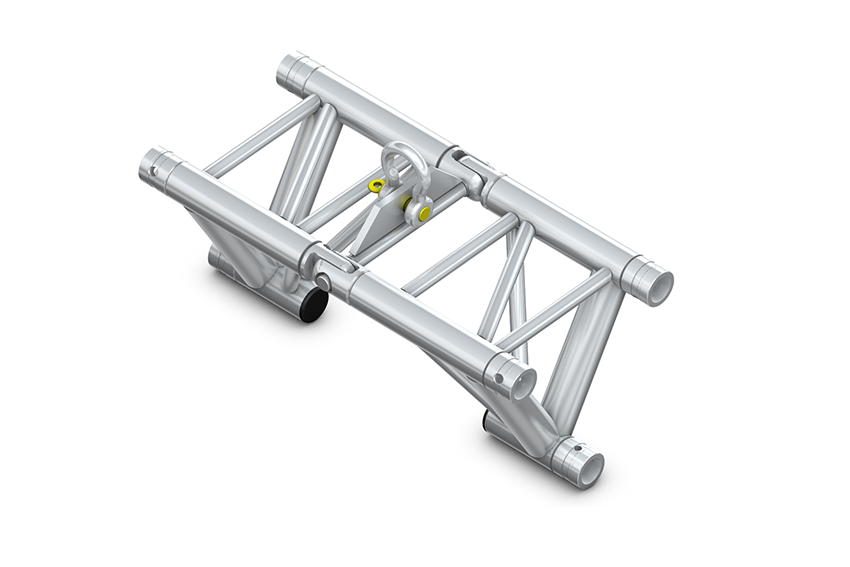

HP-STV-FLEX

This hanging point is designed to be used with M290 Trio truss...

Technical details

Code: HP-STV-FLEX

Main Tube: 48x3 mm

SWL: 1000 kg (DGUV 17 / BGV C1)

Contact Us

USA

Get your quote

Detailed information

Basic info Download section

Basic info

Description

This hanging point is designed to be used with M290 Trio truss. The suspension point is designed for overhead lifting. This unique solution allows lifting of long spans without the need of a 100% simultaneous lift. As the hanging point hinges, there is no shear or bending at the suspension point. The ideal solution for rigging long spans of truss by means of manual chain blocks. Version for M390 trusses available.

The M290 omes in three connection system versions – B, F, and U – for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.

Key benefits

Design suitabble for overhead lifting as per DGUV 17 / BGV C1
Stamped with WLL 2204 lbs and CE
Hinges upwards and downwards
Increased truss stability due to lower point of gravity by eccentric pick up point
Adapts 3.2 ton shackle
