Description

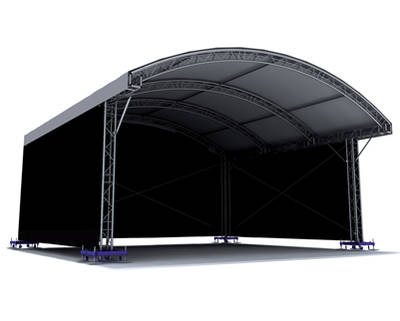

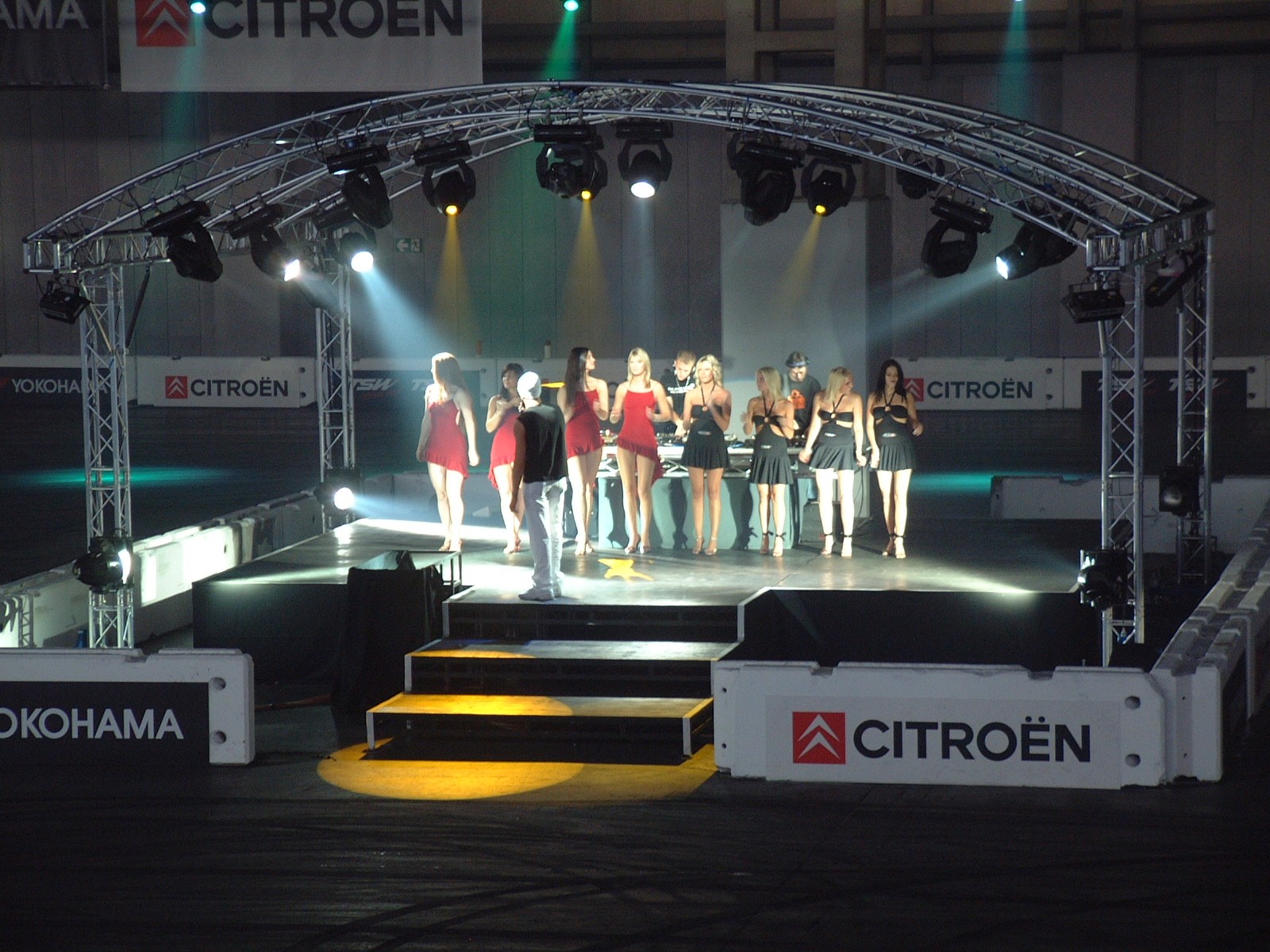

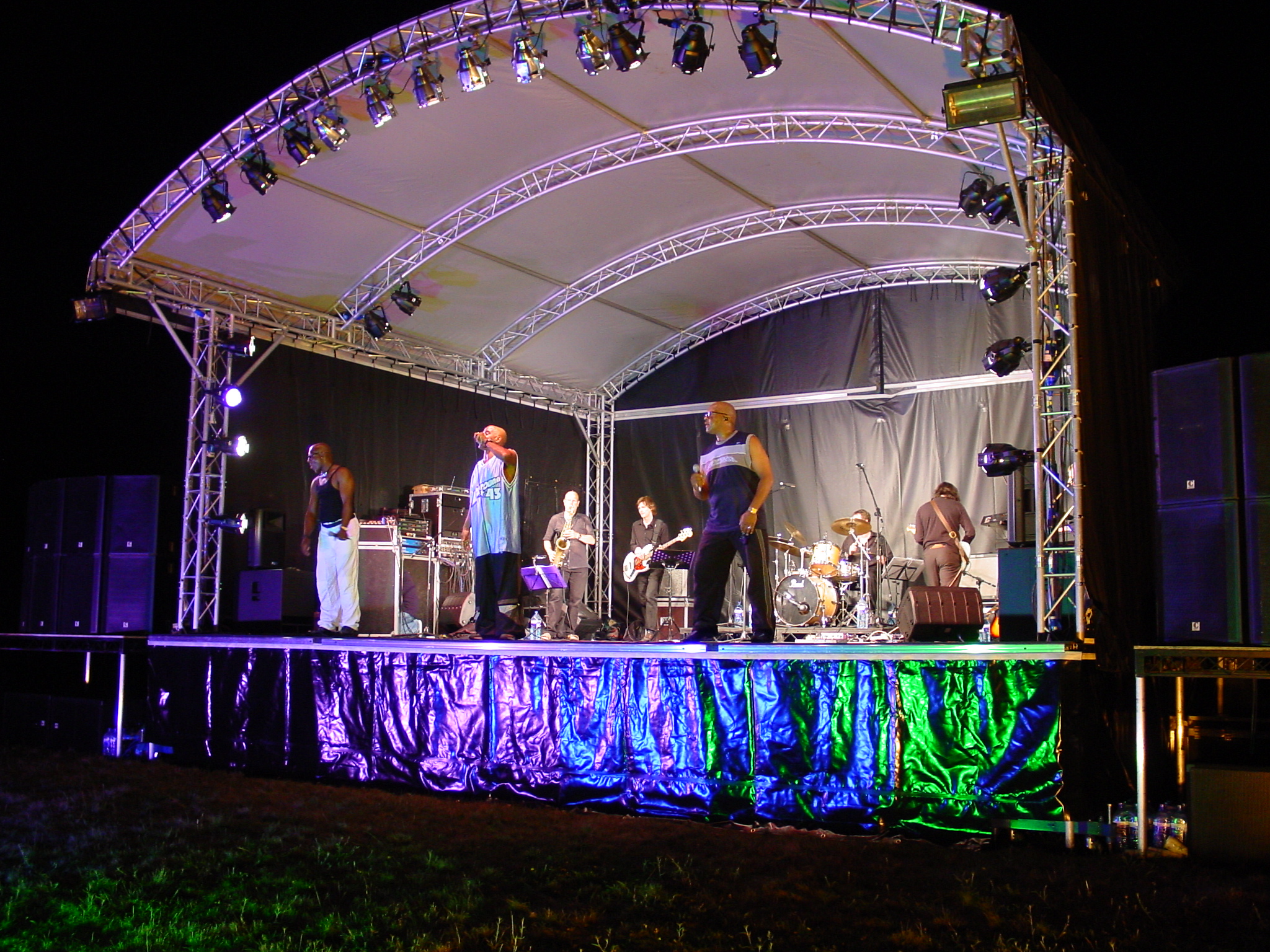

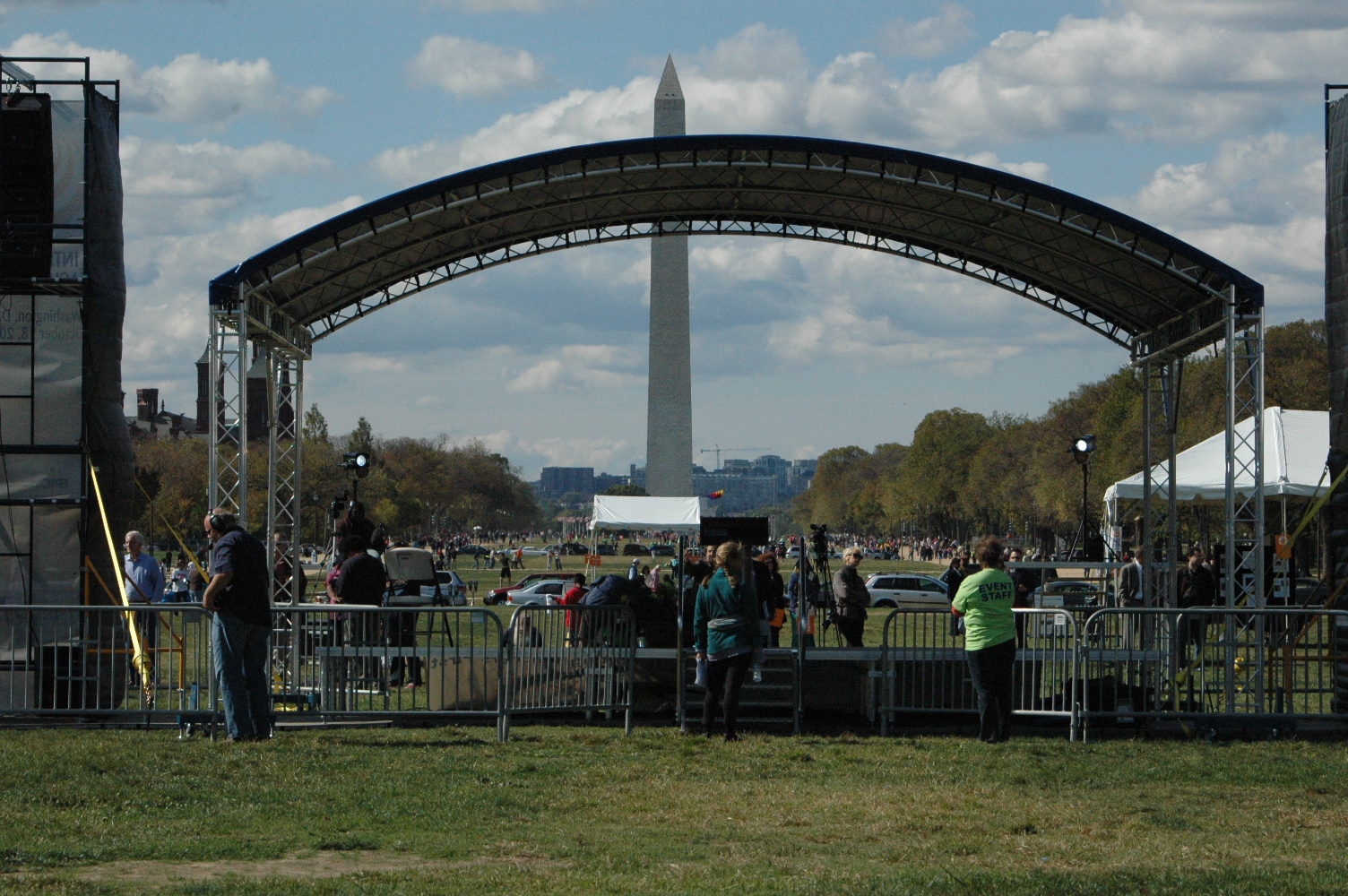

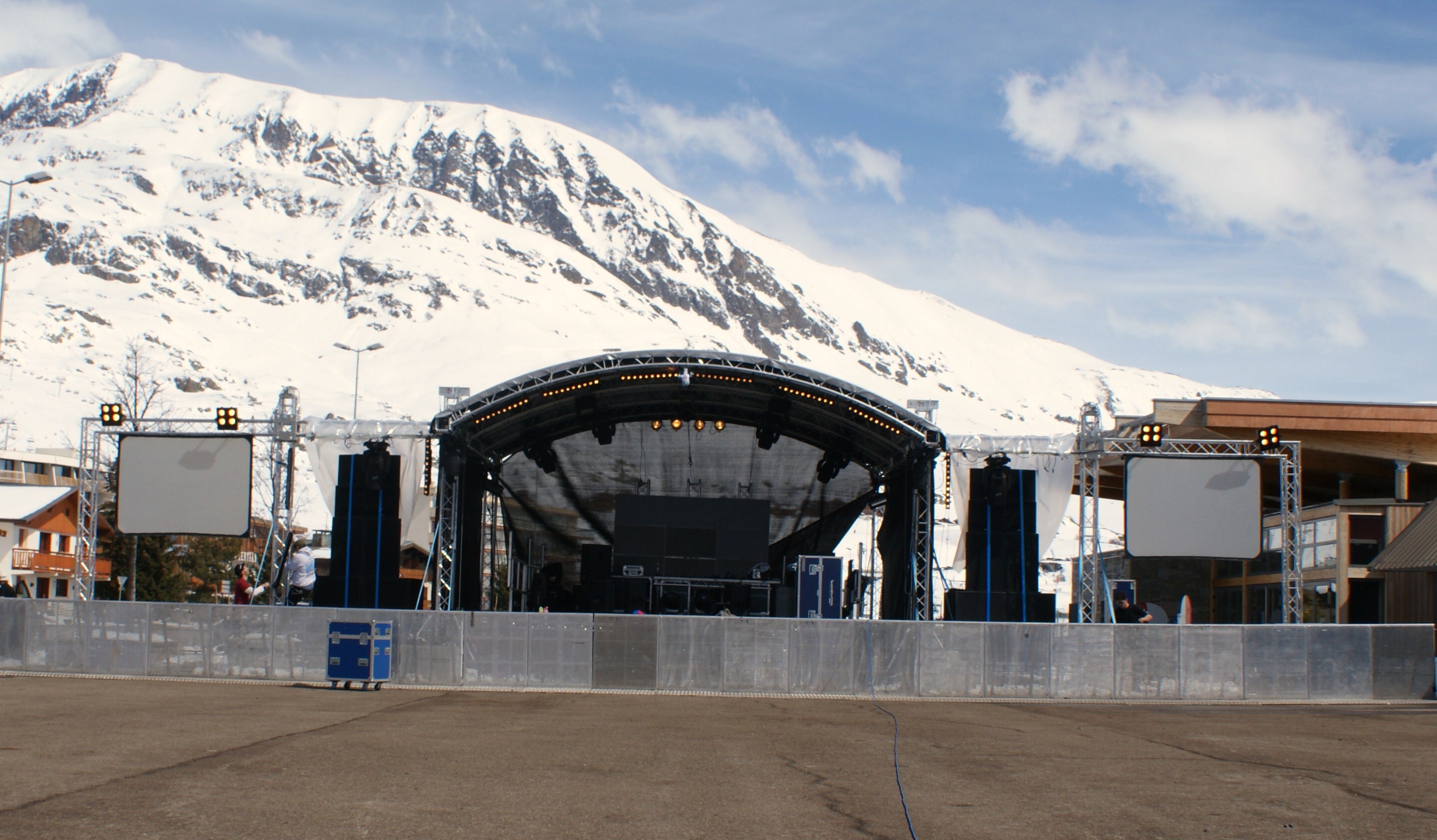

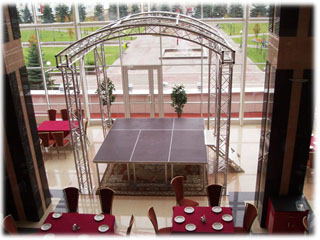

The MR1 roof was created with small bands or street festivals in mind. Its special arched aluminium roof, which serves as the frame, gives it a dynamic look while allowing water to easily drain from the canopy. No more hassles with water pockets and problems associated with water build-up. It's a temporary roof which provides you with a permanent solution.

Call or e-mail us today for more information or to request a quote.

Key benefits

6x4 m (19.69x13.12 ft) & 8x6 m (26.25x19.69 ft) Arched Roofs set-up for temporary events
Heavy-duty M290 Quatro structure with Trio arches
Fixed leg or self-climbing MT1 option 8x6 m only (26.25x19.69 ft)
Fast connection for quick, simple and secure assembly
Supplied complete with internal wind bracing wires & connection accessories
Full structural calculation report & build manual available
Conversion kit parts available to upgrade from 6x4 m to 8x6 m
PVC roof colour and side walls options
PA wing options available on request

Technical specifications
Dimensions		Stage size	8x6 m	26.25x19.70 ft	6x4 m	19.70x13.10 ft
	A	Internal width	8.00 m	26.25 ft	6 m	19.69 ft
	B	Overall external width	9.06 m	29.72 ft	6.06 m	19.88 ft
	C	Internal depth	6.40 m	20.99 ft	4.40 m	14.44 ft
	D	Overall external depth	7.48 m	24.54 ft	5.43 m	17.81 ft
	E	Clearance side	4.43 m	14.53 ft	4.43 m	14.53 ft
	F	Clearance middle	5.69 m	18.67 ft	5.42 m	17.78 ft
	G	Overall height	5.96 m	19.55 ft	5.69 m	18.67 ft
	H	Cantilever depth	1.21 m	3.97 ft	1.21 m	3.97 ft

Loading capacity
Loading capacity		Stage size	8x6 m	26.25x19,70 ft	6x4 m	19.70x13,10 ft
	Arches	Uniformly distributed (UDL)	15 kg/m	10 lbs/ft	15 kg/m	10 lbs/ft
	Side truss	Uniformly distributed (UDL)	20 kg/m	13 lbs/ft	20 kg/m	13 lbs/ft
	PA load	2x Point load each cantilever	250 kg	551 lbs	250 kg	551 lbs
	* See structural report for exact load position

Operational specifications
Design standards	DIN EN 13814 (2005) DIN EN 1991 / Eurocode 1 DIN EN 1999 / Eurocode 9 DIN EN 1993 / Eurocode 3	Fairground and amusement park machinery and structures Actions on structures Design of aluminium structures Design of steel structures
Design standards	• All our structures are produced as standard under EN 1090 EXC2, including the necessary guy wires, instruction manual and engineering report
Wind management	Out of service In service	28.0m/s - 100km/h - 62mph (Max. gust wind speed) 17.8m/s - 64km/h - 40mph (Max. gust wind speed)
Wind management	* Calculations based on 100% closed side canopies * Side canopies and loads to be removed above this wind speed if not considered
Ballast	This can vary per tower from 350kg / 771lbs up to 2400kg / 5286lbs and depends on: • If tower bases are interconnected or free-standing • Layout of canopies • Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions) • Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls	B1 fire retardant canopy on request, single piece format or kedder profiles on request Silver grey; other colours or inside black on request B1 fire retardant side nets in compliance with latest Eurocodes
Customised	Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) in accordance with requirement

Transportation data
Self-weight	Stage size	8x6 m	26.25x19,70 ft	6x4 m	19.70x13.10 ft
Self-weight	* Exact self-weight depends on configuration	1344 kg	2960 lbs	1034 kg	2278 lbs
Transport volume	* Packed in carton boxes and bubble foil	20 m3	706 ft3	15 m3	530 ft3
