New Milos MR2K Roof with low profile Keder canopy and versatile horizontal truss grid layout for maximum event rigging solutions.

Complies with latest EuroCode specifications.

Roof TOP frame work can be adapted additionally into existing ground support inventory

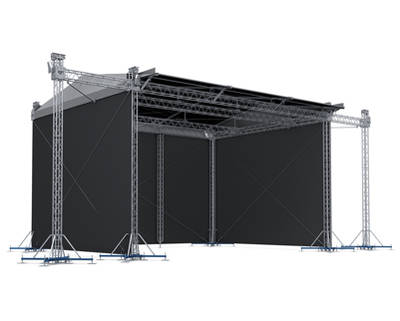

Keder Roof structure for temporary events

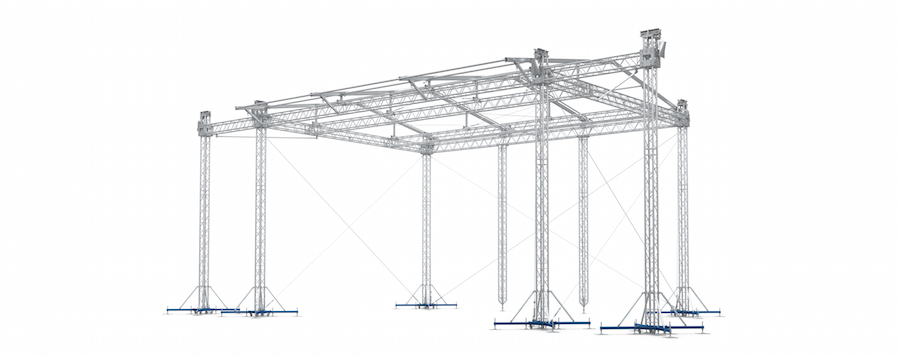

MT1 Towers with horizontal M390 grid for maximum production rigging
MT2 Tower with horizontal M520 grid for higher loading also available

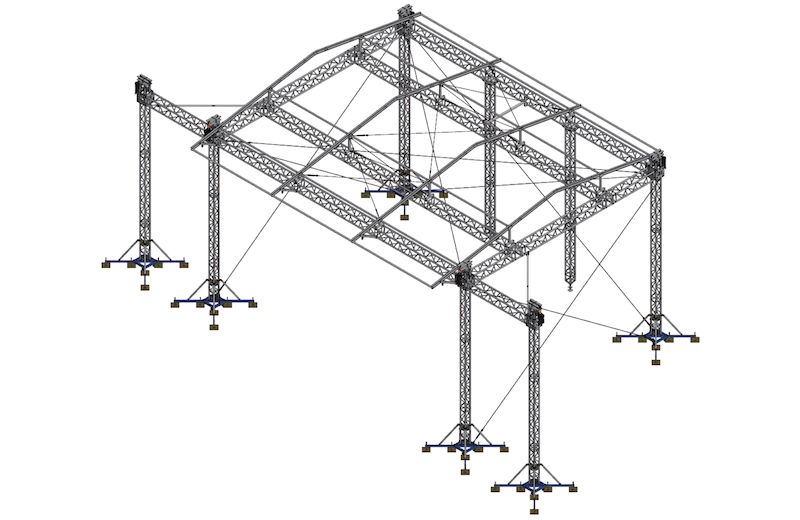

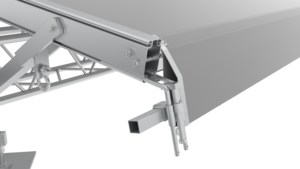

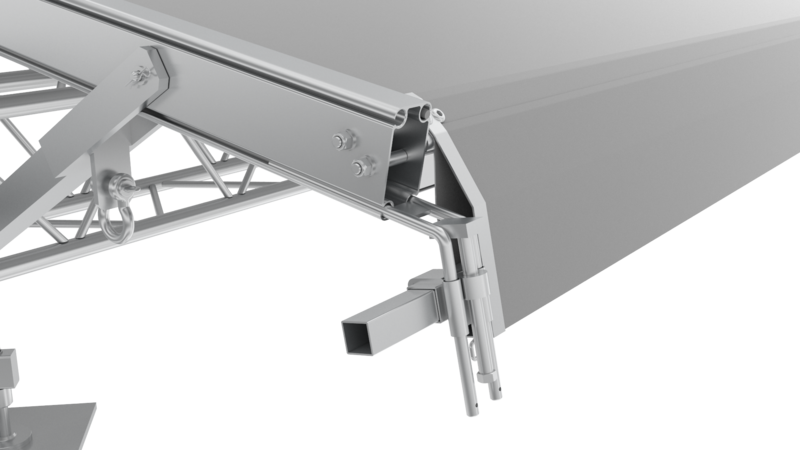

Low profile keder roof construction for ease of installation
Additional rear towers for LED support off back stage beams
MT1 Towers with M390 roof and lightweight canopy support structure
Operate with manual chain block or electric chain hoist (bracket required)
Supplied complete with internal wind bracing wires & connection accessories
Full structural calculation report & build manual available

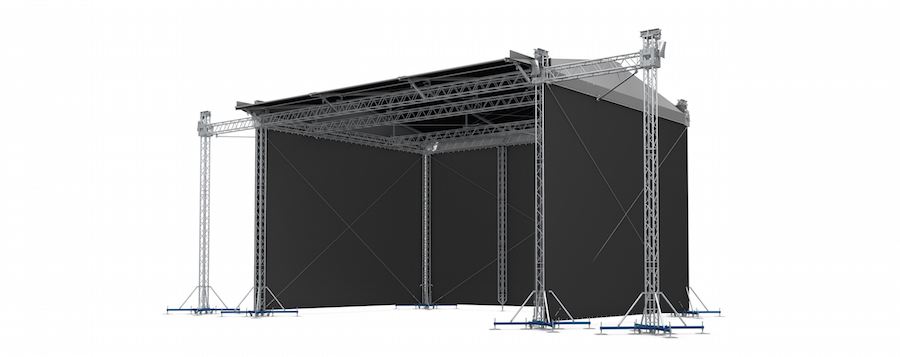

PVC roof colour and side walls ( mesh or solid ) options

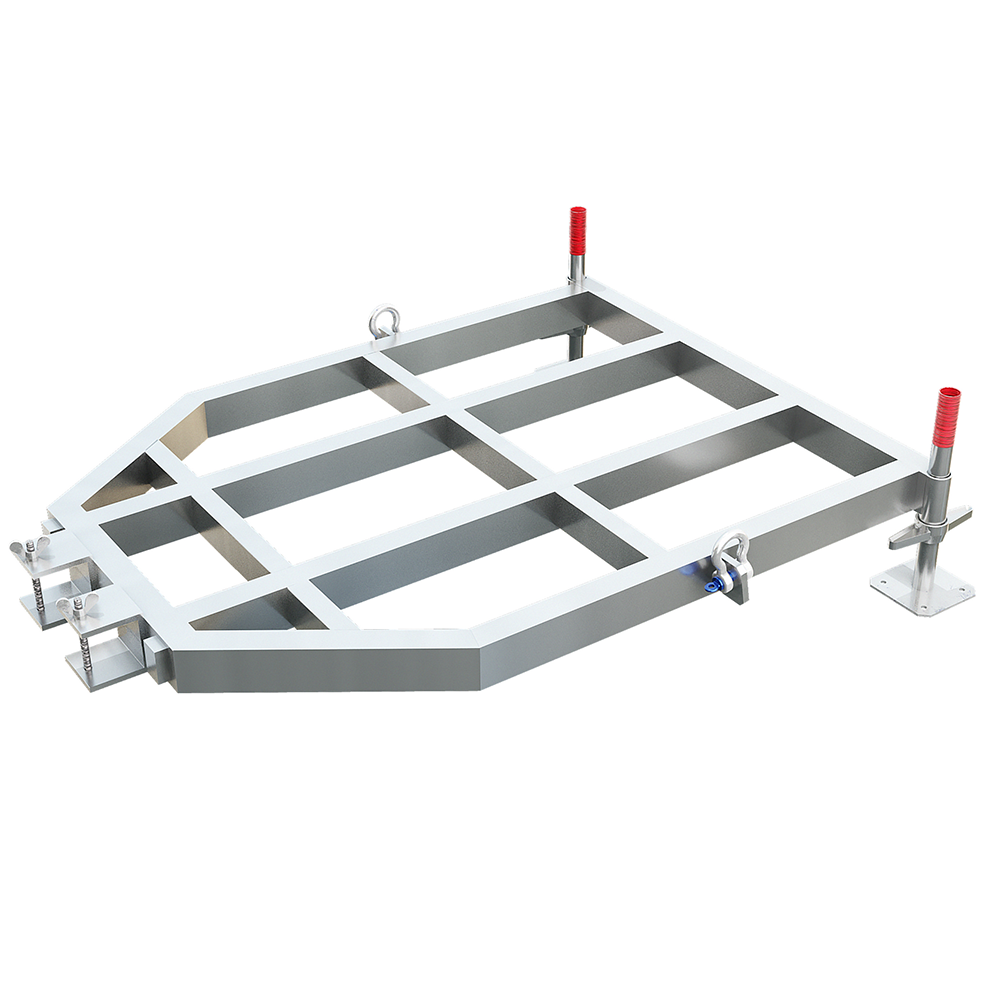

Integrated tower base / stage components available
PA wing options available on request
EXE hoists recommended

Technical specification

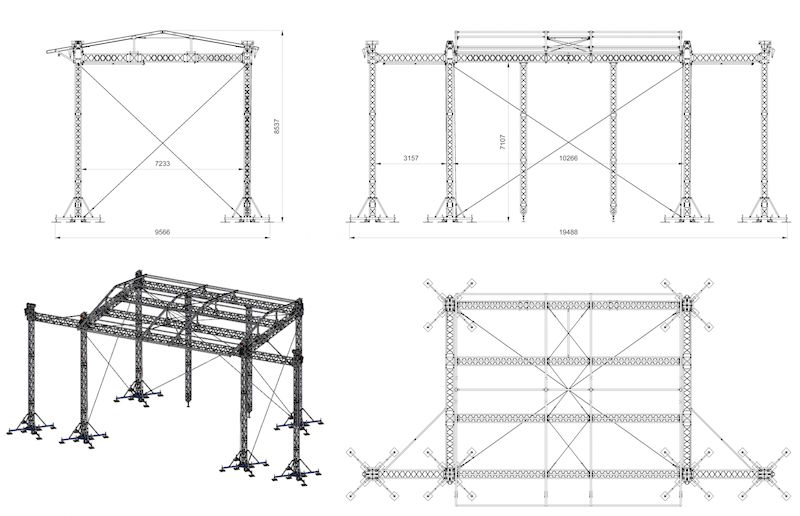

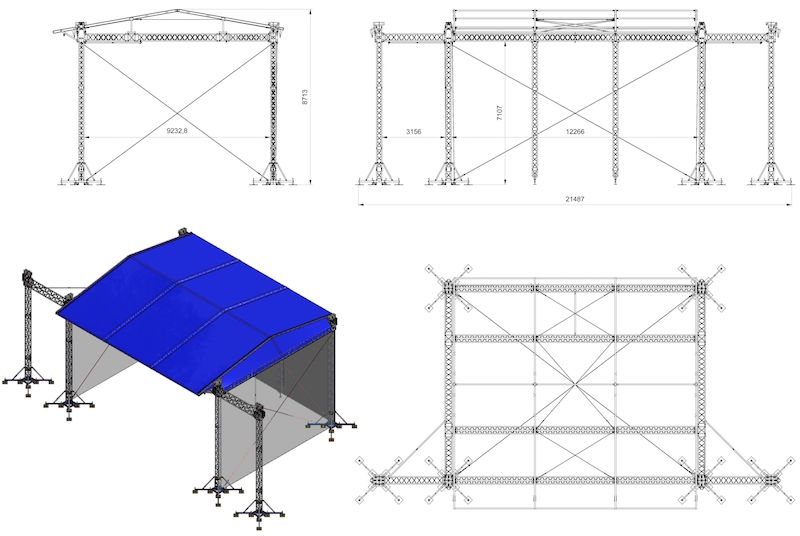

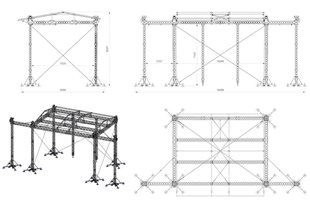

Dimensions		Stage size	15x12 m	49.21x39.37 ft	12x10 m	39,37x32,81 ft	10x8 m	32,81x26,30 ft
	A	Internal width	15,31 m	50.23 ft	12,26 m	40.22 ft	10,26 m	33.66 ft
	B	Overall external width	17,95 m	58.89 ft	14,60 m	47.90 ft	12,60 m	41.34 ft
	C	Internal depth	11,73 m	38.48 ft	9,23 m	30.28 ft	7,23 m	23.72 ft
	D	Overall external depth	14,41 m	47.28 ft	11,57 m	37.96 ft	9,57 m	31.40 ft
	E	Clearance	10,51 m	34.48 ft	7,10 m	23.29 ft	7,10 m	23.29 ft
	F	Overall height	12,19 m	39.99 ft	8,70 m	28.54 ft	8,53 m	27.99 ft
	G	PA wing - internal width	3,15 m	10.33 ft	3,15 m	10.33 ft	3,15 m	10.33 ft
	G	PA wing -Overall external width	4,26 m	13.98 ft	3,44 m	11.29 ft	3,44 m	11.29 ft

Operational specifications
Design standarts	DIN EN 13814 (2012) DIN EN 1991 / Eurocode 1 DIN EN 1999 / Eurocode 9 DIN EN 1993 / Eurocode 3	Fairground and amusement park machinery and structures Actions on structures Design of aluminium structures Design of steel structures
Design standarts	• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management	Out of service In service	28,8m/s - 103km/h-64mph (Max. gust windspeed) 17,8m/s - 64km/h - 40mph (Max. gust windspeed)
Wind management	* Calculations based on 100% closed side canopies * Side canopies to be removed above this wind speed if not considered
Ballast	This can vary per tower from 1000kg / 2203lbs up to 8000kg/17637lbs and depends on: • If tower bases are interconnected or free-standing • Layout of canopies • Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions) • Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls	B1 fire retardant canopy on request, in kedders, configurable for various sizes Silvergrey; other colors or inside black on request B1 fire retardant side nets in compliance with latest Eurocodes
Customized	Customisation (i.e. truss configuration, alternative dimensions) on requirement

Transportation data
Self-weight	Stage size	15x12 m	49.21x39.37 ft	12x10 m	39,37x32,81 ft	10x8 m	32,81x26,30 ft
Self-weight	* Exact self-weight depends on configuration	5000 kg	11023 lbs	3010 kg	6630 lbs	2785 kg	6134 lbs
Transport volume	* Packed in carton boxes andbubble foil	50 m3	1765 ft3	30 m3	1060 ft3	25 m3	882 ft3
