Code
S-MR10 28x19, 32x19

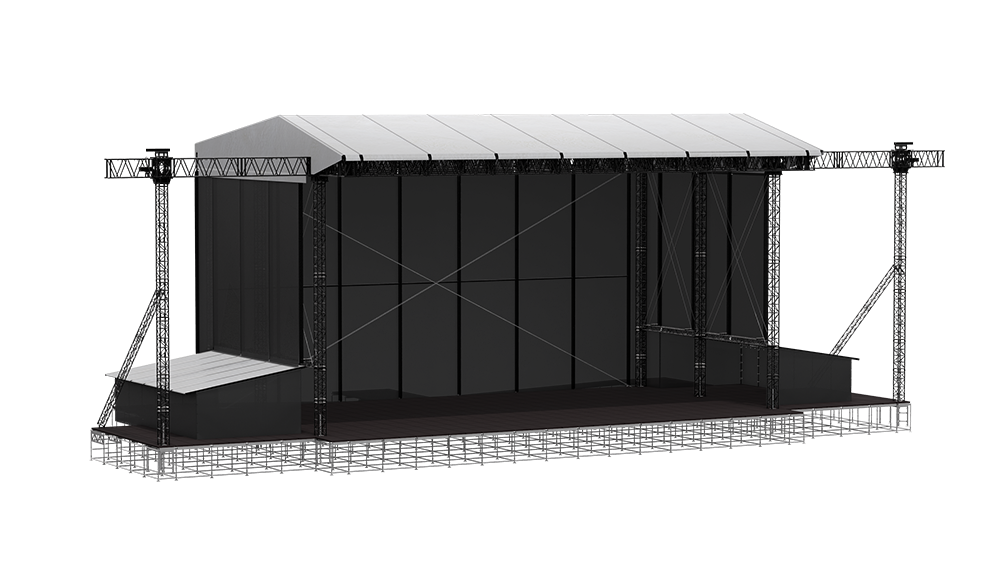

S-MR10 Steel roof (28x19m & 32x19m)

Detailed information

•Constructed from ultra-high-strength steel
•Unique locking system with capacity of 45 t per tower
•Steel head section with aluminium wheels and heavy-duty bearings
•Dimensions 28×19 m (92×62 ft) or 32×19 m (105×62 ft)
•Loading capacity up to 68 t (149910 lbs) for 28×19 m version
•Durable industrial black paint finish as standardon all trusses
•Towers with integrated ladder for easy climbing
•Canopy tensioning system for roof top canopies
•Keder profiles for secure attachment of canopies
•Covered backstage areas on sides as an option
•PA wings options available on request
Technical specification
Dimensions   Stage size 28x19 m 91.86x62.33 ft 32x19 m 104.99x62.33 ft
A Internal width 28.50 m 93.50 ft 32.50 m 106.63 ft
B Overall external width 51.10 m 167.65 ft 55.10 m 180.77 ft
C Depth 15.80 m 51.83 ft 15.80 m 51.83 ft
D Overall external depth 20.30 m 66.60 ft 20.30 m 66.60 ft
E Clearance 13.90 m 45.60 ft 13.90 m 45.60 ft
F Overall height 17.30 m 56.76 ft 17.30 m 56.76 ft
  G PA wing – internal width 8.47 m 27.79 ft 8.47 m 27.79 ft
  H PA wing – overall external width 9.00 m 29.53 ft 9.00 m 29.53 ft
  I Cantilever depth 3.50 m 11.48 ft 3.50 m 11.48 ft

Loading capacity
Loading capacity   Stage size 28x19 m 91.86x62.33 ft 32x19 m 104.99x62.33 ft
Main grid  (UDL) 50000 kg 110228 lbs 40000 kg 27777 lbs
  Side wings and PA in total 18000 kg 39682 lbs 18000 kg 39682 lbs
* See structural reports for exact load positioning
Operational specifications
Design standarts EN 17879
EN 1991-1-4
EN 1993
EN 1999
Event structures – Safety requirements
Loads on structures: Wind loads
Design of steel structures
Design of aluminium structures
Wind management Out of service
In service
28 m/s - 100km/h - 62mph (Max. gust windspeed)
17,8m/s - 64km/h - 40mph (Max. gust wind speed)
* Calculation based on 100% windproof cladding on rear wall, side walls and side wing fronts
*Cladding on side walls and rear wall must be dismantled; the upper half of the side wing fronts can remain covered (e.g. by LED screens)
Ballast Depending on configuration, side wing, covering, compression beam, guy wires, corner brace, substructure
Canopy & sidewalls B1 fire retardant canopy on request, kedders profiles optional
Silvergrey; other colors or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customised Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on request
