Detailed information

Basic info Lengths & Weights Download section

Key benefits

  • MT Tower LED Screen Support solution
  • Wide range of system options available to suit specific screen size & weight
  • Self-climbing towers (MT1) with electric or manual hoists
  •  EXE hoists recommended
  • Fast connection for quick, simple and secure assembly
  • Guy wire connection points for additional stabilisation
  • Cheapest LSG concept available
  • Powder coat colour finish available on request
Technical specification
Dimensions   LED screen size 8x4,5 m 26,24x14,76 ft 6,40x4,50 m 21,00x14,76 ft 6x4 m 19,70x13,10 ft
A Internal width 9,32 m 30.57 ft 7,32 m 24.01 ft 7,15 m 23.45 ft
B External width 2,23 m 7.32 ft 2,23 m 7.32 ft 2,05 m 6.72 ft
C Width set-up area
incl. guy wires		 19,75 m 64.80 ft 15,25 m 50.04 ft 15,25 m 50.02 ft
D Depth set-up area
incl. guy wires		 16,10 m 52.82 ft 12,40 m 40.68 ft 12,40 m 40.67 ft
E Clearance 8,02 m 26.31 ft 6,54 m 21.46 ft 7,89 m 25.88 ft
F Overall height 9,67 m 31.72 ft 8,26 m 27.09 ft 8,04 m 26.37 ft

Loading capacity
Loading capacity   LED screen size 8x4,5 m 26,24x14,76 ft 6,40x4,50 m 21,00x14,76 ft 6x4 m 19,70x13,10 ft
LED Screen 4x point loads
equally divided		 550 Kg 1212 lbs 625 Kg 1377 lbs 250Kg 551 lbs
  Max. total load 1700 Kg 3747 lbs 2500 Kg 5511 lbs 1000 Kg 2205 lbs
* See structural report for exact load positioning

Operational specifications
Design standarts DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800		 Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminium structures
Design of steel structures
• All our structurers are standard produced under EN 1090 EXC2, include necessary guy wires, instruction manual and engineering report
Wind management Max. wind speed incl. screen 28m/s - 100km/h - 62mph (Max. basic wind speed)
* Screen to be stabilised against swinging by cross truss at bottom of screen

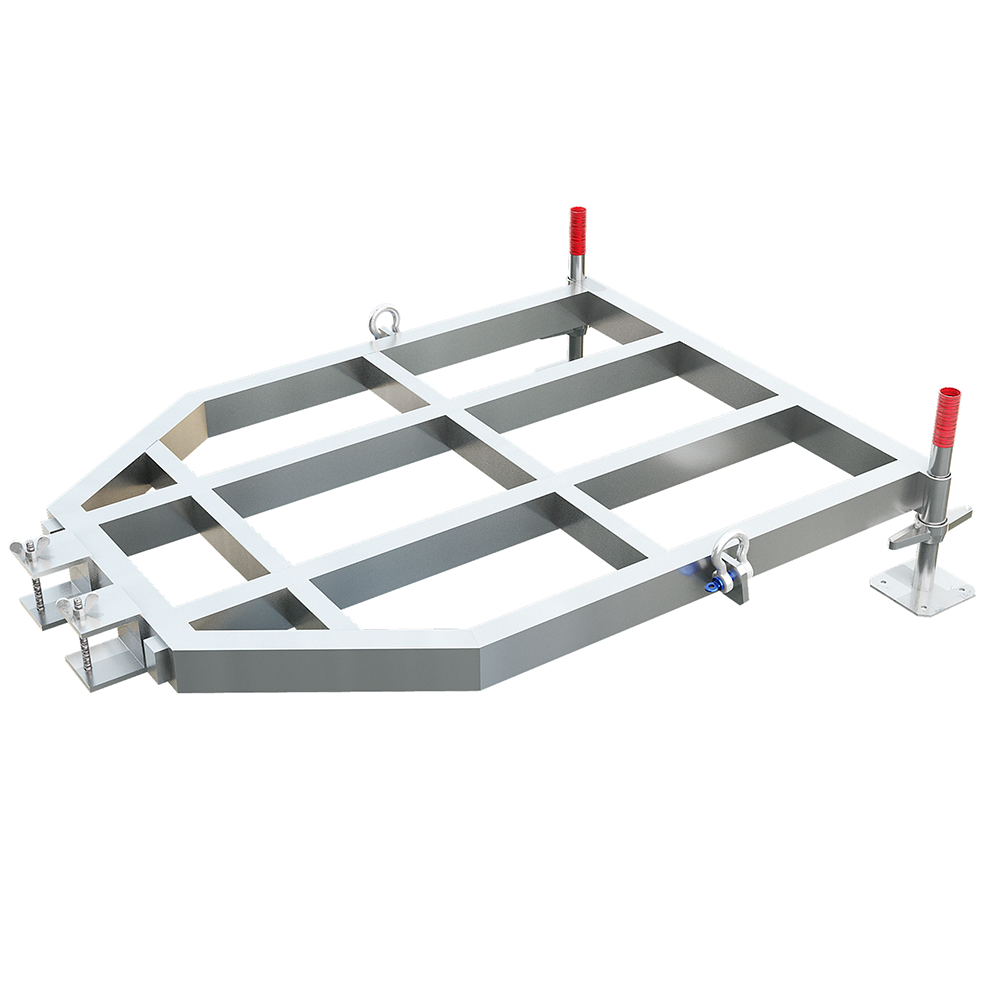

Ballast 4x 2160kg / 4757lbs at each end of the outriggger
* Figure based on screwjack to timber spreader to rubber to concrete / asphalt
Customized Customisation, i.e. truss configuration, alternative dimensions, on requirement.
Always verify with Milos your screen dimensions, weight and rigging plan for correct configuration

Transportation data
Self-weight LED screen size 8x4,5 m 26,24x14,76 ft 6,40x4,50 m 21,00x14,76 ft 6x4 m 19,70x13,10 ft
* Exact self-weight depends on configuration 850 kg 1874 lbs 485 kg 1068 lbs 355 kg 783 lbs
Transport volume * Packed in carton
boxes and bubble foil		 8 m3 282 ft3 6 m3 212 ft3 5 m3 176 ft3

LSG1

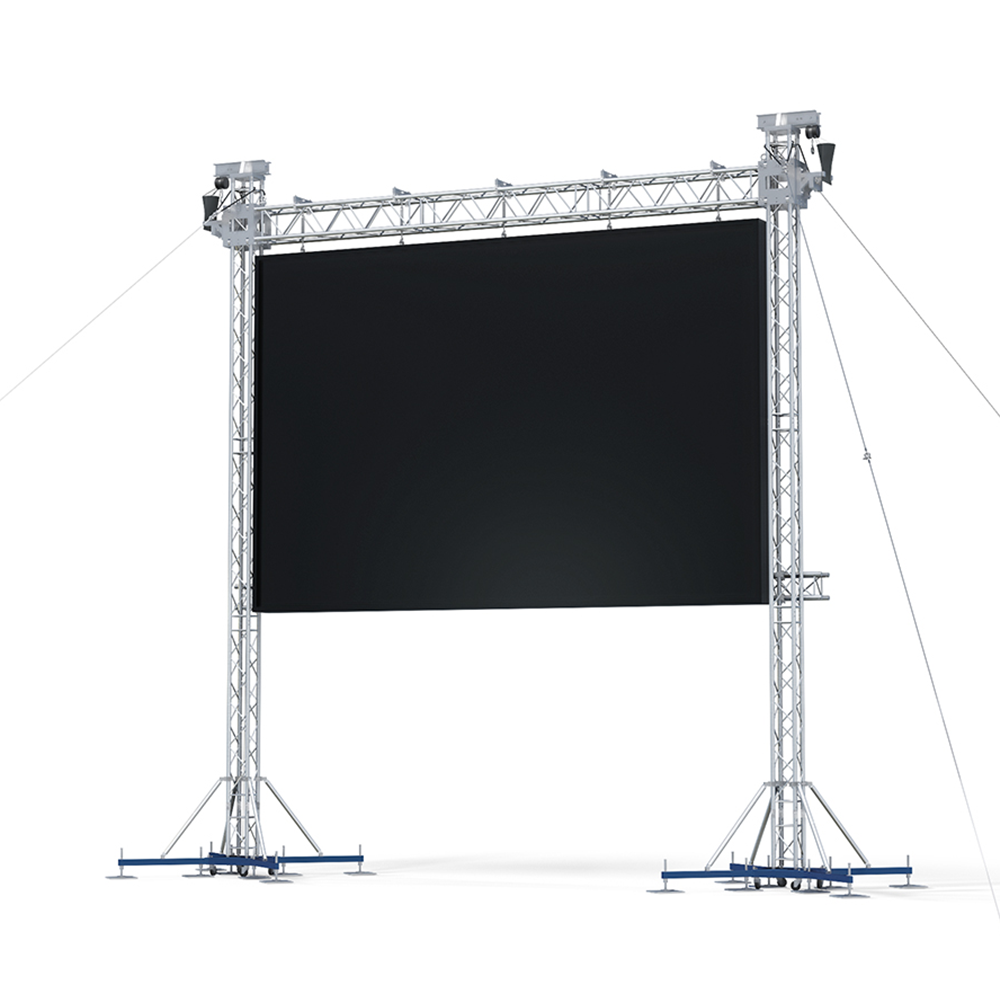

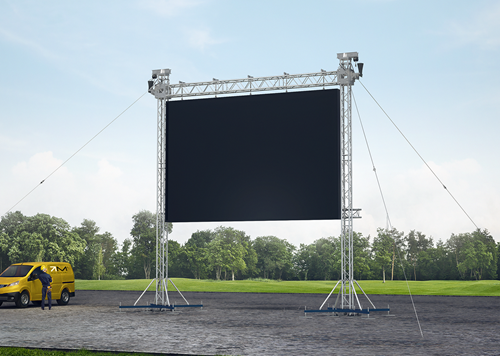

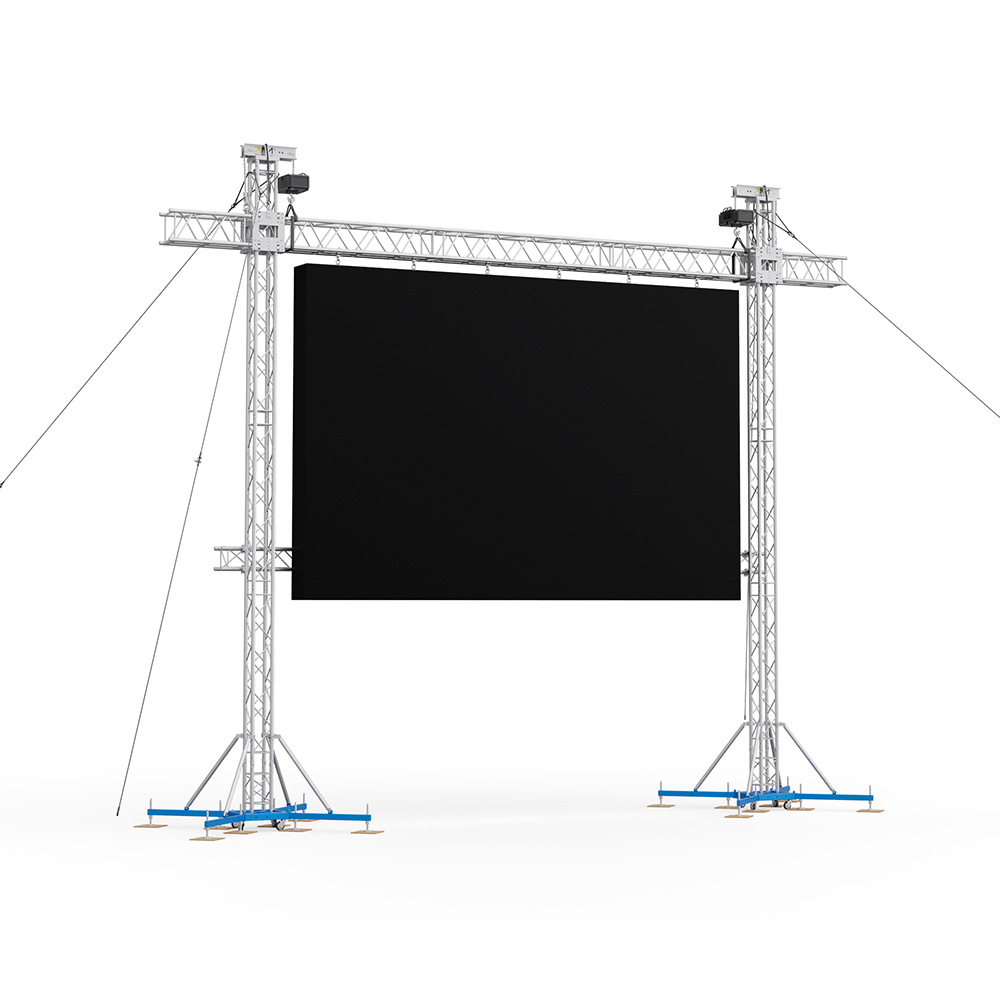

LSG1 LED Screen structures

Compact LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly. Wide range of options to suit specific screen size & weight.
Available colors:
Code
LSG1 8x4,5m, LSG1 6,4x4,5m, LSG1 6x4m
Self Weight
850 kg
