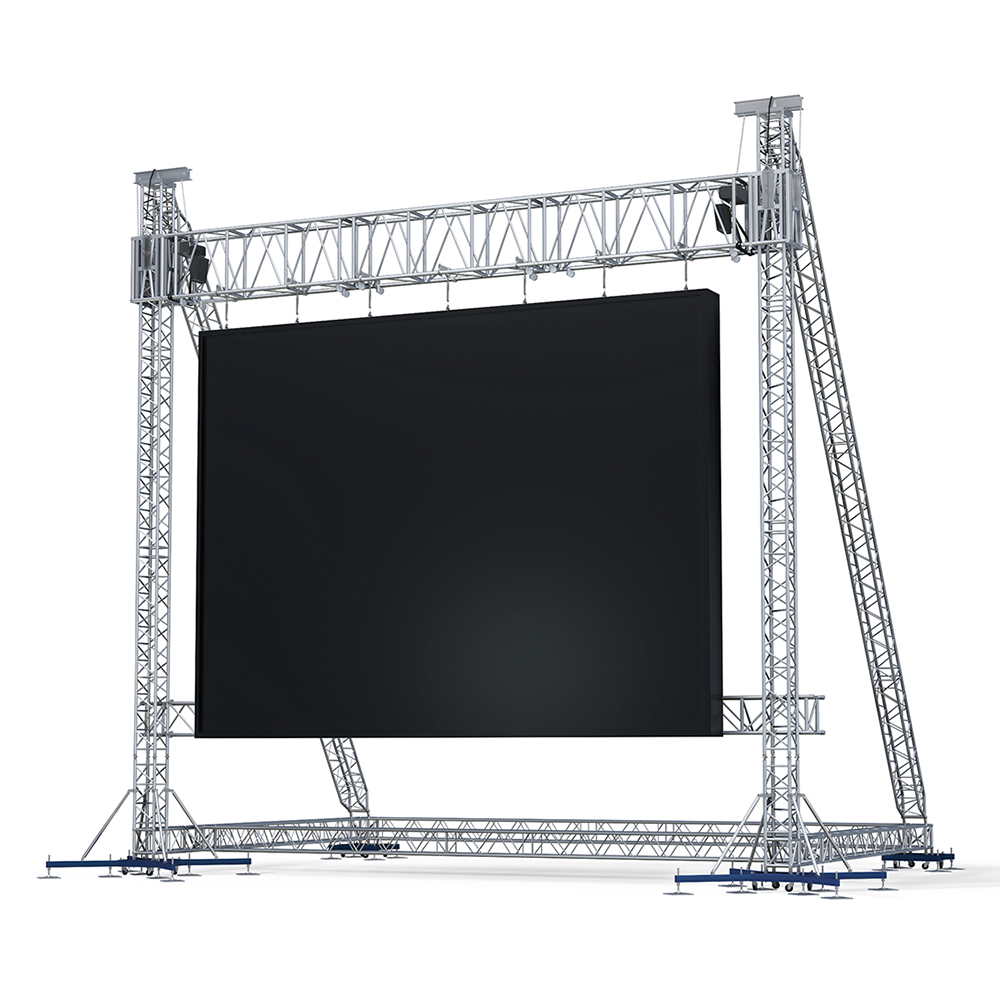

Large format MT Tower LED Screen Support solution
Various system options available to suit specific screen size & weight
Self-climbing towers ( MT3) with electric or manual hoists
EXE hoists recommended
Rear base frame & diagonal stabilizer provide obstruction-free viewing
Powder coat colour finish available on request

Technical specification
Dimensions		LED screen size	10x6 m	32.80x19.70 ft	8x6 m	26.30x19.70 ft
	A	Internal width	11.36 m	37.26 ft	9.36 m	30.71 ft
	B	Overall external width	13.99 m	45.89 ft	11.99 m	39.34 ft
	C	Overall external depth	8.38 m	27.49 ft	8.38 m	27.49 ft
	D	Clearance	8.50 m	27.88 ft	8.31 m	27.27 ft
	E	Overall height	10.56 m	34.64 ft	10.56 m	34.65 ft

Loading capacity
Loading capacity		LED screen size	10x6 m	32.80x19,70 ft	8x6 m	26.30x19.70 ft
	LED Screen	8x point loads equally divided	400 kg	882 lbs	500 kg	1101 lbs
		4x point loads equally divided	800 kg	1764 lbs	1000 kg	2203 lbs
		Max. total load	3200 kg	7056 lbs	4000 kg	8811 lbs
	*See structural report for exact load positioning

Operational specifications
Design standarts	DIN EN 13814 (2005) DIN 1055-4 DIN 4113 DIN 18800	Fairground and amusement park machinery and structures Actions on structures / wind Design of aluminum structures Design of steel structures
Design standarts	• All of our structures are produced as standard under EN 1090 EXC2, including the neccessary guy wires, instruction manual and engineering report
Wind management	Max. wind speed incl. screen	28m/s - 100km/h - 62mph (Max. basic wind speed)
Wind management	* Screen to be stabilized against swinging by cross truss at bottom of screen

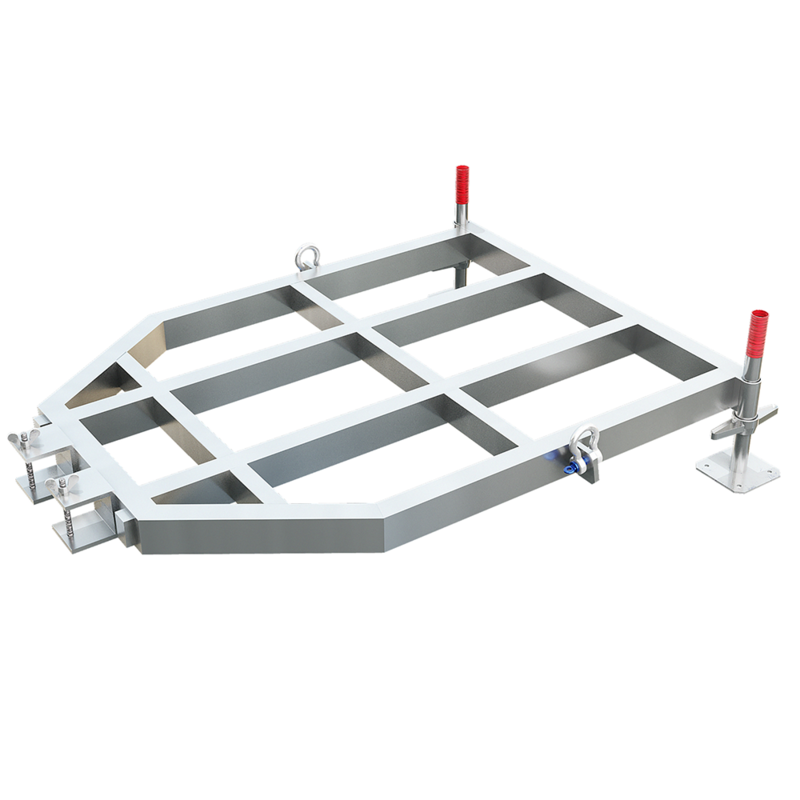

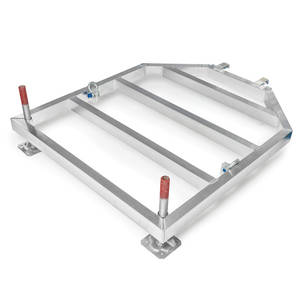

Ballast	4x 1400kg / 3808lbs at each end of the outrigger Figure based on screwjack to timber spreader to rubber to concrete / asphalt
Customized	Customization, i.e. truss configuration, alternative dimensions, on requirement Always verify with Milos your screen dimensions, weight and rigging plan for correct configuration

Transportation data
Self-weight	LED screen size	10x6 m	32.80x19.70 ft	8x6 m	26.30x19.70 ft
Self-weight	* Exact self-weight depends on configuration	2400 kg	5291 lbs	1858 kg	4093 lbs
Transport volume	* Packed in carton boxes and bubble foil	15 m3	530 ft3	12 m3	424 ft3

LSG3

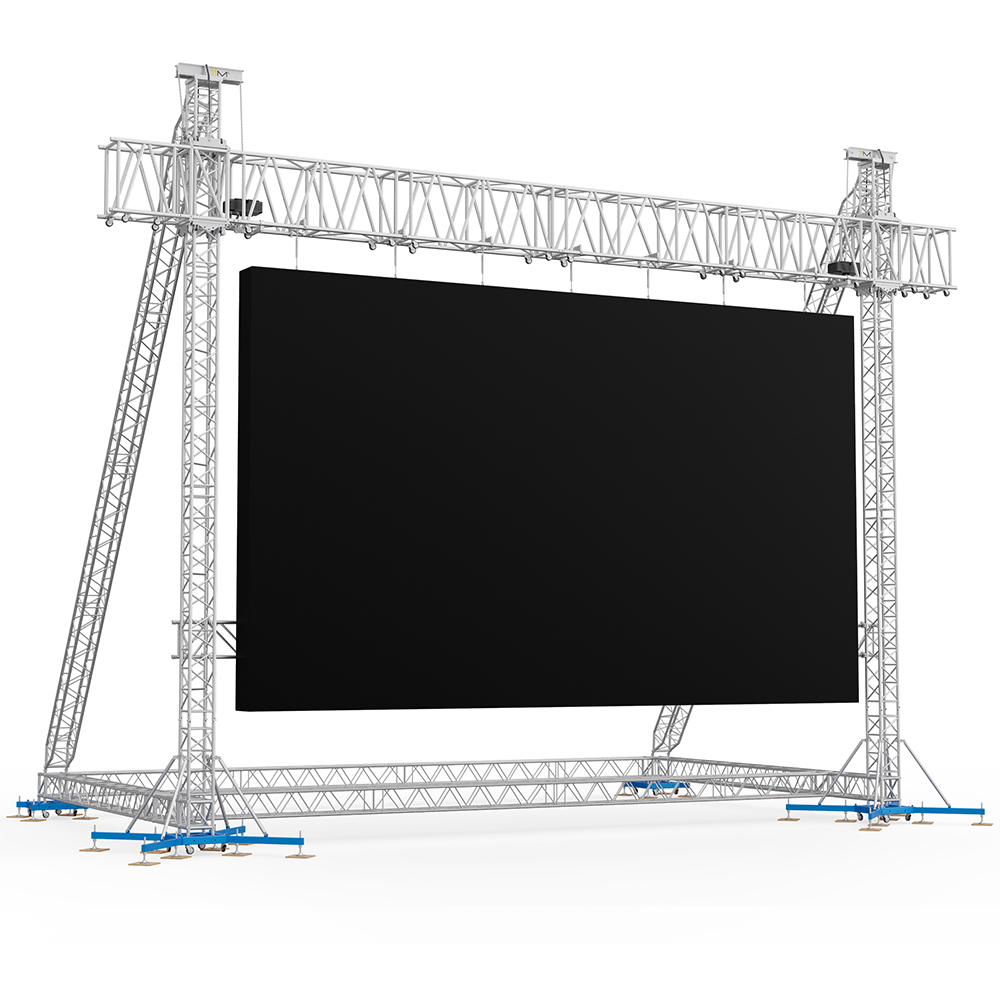

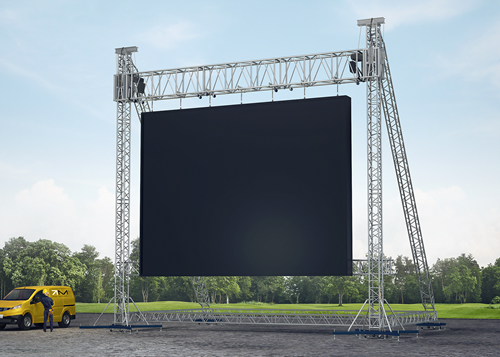

LSG3 LED Screen structures

Large format LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly. Wide range of options to suit specific screen size & weight.

Available colors:

Code: LSG3 10x6m, 8x6m

Self Weight: 2400 kg
