Detailed information

Description

Our 4GS-50 range of modular aluminium systems are ideal solutions for large truss structures, towers and gantries. Superior performance and durability of the traditional fork and tongue connection is popular with rental companies worldwide. They have come to rely on the 4GS-35 and 4GS-50 for all forms of rigging towers, exhibition gantries and large concert stages. Components can be supplied in either Natural Mill Aluminium or a variety of Powder Coated colours and finishes.

Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Medium-duty truss range
  • All components supplied complete with connection accessories
  • Wide range of standard lengths & accessories
  • Compatible with 200 / 400 / 500 / 600 series cell clamps
  • Powder coat colour finish available on request
  • 4GS-50 great free-span & loading characteristics (up to 30m / 98.43 ft)
4GS-50 - Standard lengths and weights available
0.5 m 1 m 2 m 3 m 4 m
9.70 kg 15.10 kg 27.40 kg 40.50 kg 52.10 kg

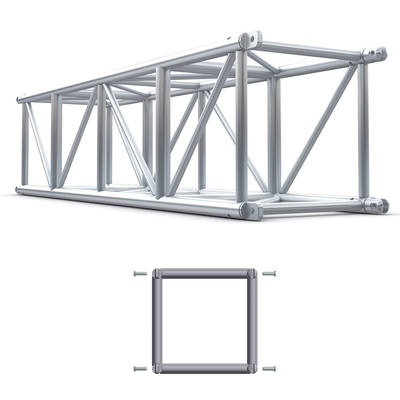

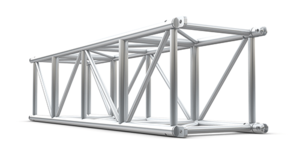

4GS-50 - High Capacity Fork Connection Series

Modular aluminium system for large truss structures, concert stages, towers and gantries with traditional fork & tongue connection.

Available colors:
Code
4GS-50
Main Tube
48 x 4,5 mm
Braces
32 x 3 mm and 25 x 3 mm
Available Length
0.5 - 4 m
Size
500 x 500 mm
Span
30 m
4GS-50 - High Capacity Fork Connection Series
4GS-50 - High Capacity Fork Connection Series

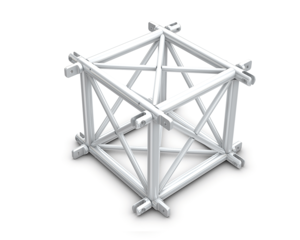

Accessories
