4GS-62 - High Capacity Fork

Modular, space saving aluminium truss system with extended capacity and span specifications, as well as traditional fork & tongue connections for the stage, lighting and rigging tower needs of touring productions.
Available colors:
Code
4GS-62F
Main Tube
48 x 4,5mm
Braces
25 x 3mm / 32 x 3 mm
Available Length
1,2 - 2,4 m
Size
617 x 617 mm
Span
24 m
4GS-62 - High Capacity Fork
4GS-62 - High Capacity Fork

Detailed information

Description

Our 4GS-62/62F range of modular aluminum systems provide reliable high loading capacity for your touring productions. The superior performance and durability of the traditional fork and tongue connection is popular with rental companies worldwide. The 4GS-62F folding format combines a high level of free-span and load capacity with reduced space requirements for storage and transportation. Perfect for your stage truss, lighting truss, and rigging tower needs.
Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Great free-span & loading characteristics (upto 30m / 98.43 ft)
  • High capacity fork-connection series
  • Wide range of standard lengths & accessories
  • Cell clamp 200 / 400 / 500 / 600 series compatible

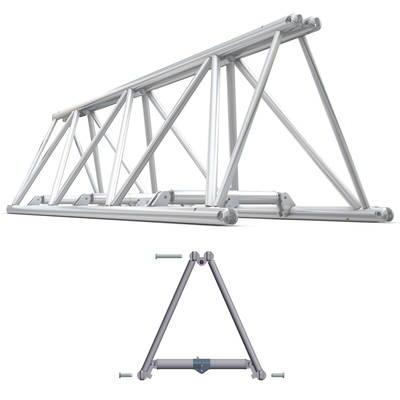

  • Square or compact folding formats available
  • Powder coat colour fi nish available on request
  • All components supplied complete with connection accessories
4GS-62 - Standard lengths and weights available
  1.2 m 1.63 m 2.4 m 3 m
4GS-62 20 kg 28 kg 40 kg 51 kg
4GS-62F 19 kg 25 kg 37 kg -
