MILOS. Flexibility Behind Your Show.

Quatro Regular Quatro Heavy duty Trio Regular Trio Heavy duty Duo Regular Duo Heavy duty

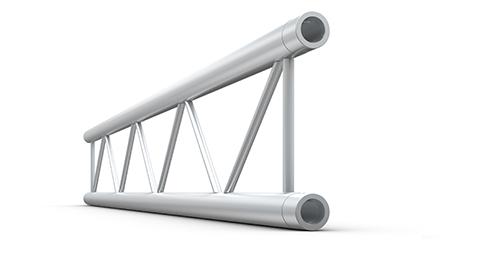

Certified 50mm tube modular truss series with great free-span & loading characteristics. Compatible with 200/400/500/600 series cell clamps and Xtruss accessories

Code: BTB

Main Tube: 50 x 2 mm

Braces: BTB,BTF 16 x 2 mm
BTU 20 x 2 mm

Available Length: 0,5 - 5 m

Size: 290 mm

Span: 20 m

Available colors:

Detailed information

Description

The M290 system is our mid-sized stage truss line that can be used for both small and large applications. The M290 aluminum truss comes in a "B" and "V" range, which are designed for both large and small applications. The "V" Range is for heavy duty use, while the "B" Range is for medium duty use. Both trussing systems offer excellent spanning and weight loading capabilities while providing a decorative touch!
Call or e-mail us today for more information or to request a quote.

“NOTE: Duo loading data are based on use in vertical orientation with lateral stabilisation of both the top and bottom main chord every 1m”.

Key benefits

Certified 50mm tube M290 Series modular truss range
Great free-span & loading characteristics (upto 20m / 65.61 ft)
Interior & exterior applications
Connection kit supplied with every truss length & junction
Durable construction with diagonal anti-twist end brace
Cell clamp 200 / 400 / 500 / 600 series compatible
Fast connection for quick, simple and secure assembly
Xtruss accessories compatible
Powder coat colour finish available on request

Downloads

M290

Contact Us

USA

Get your quote

M290 Regular - Standard lengths and weights available
	0.5 m	1 m	1.5 m	2 m	2.5 m	3 m	4 m	5 m
Duo	1.60 kg	2.60 kg	3.60 kg	4.50 kg	5.40 kg	6.60 kg	8.30 kg	10.30 kg
Trio	2.60 kg	4.30 kg	6.00 kg	7.70 kg	9.10 kg	10.80 kg	14.10 kg	18.00 kg
Quatro	3.90 kg	6.00 kg	8.30 kg	10.60 kg	12.90 kg	15.00 kg	19.60 kg	23.50 kg

M290 Heavy Duty - Standard lengths and weights available
	0.5 m	1 m	1.5 m	2 m	2.5 m	3 m	4 m	5 m
Duo	1.80 kg	3.10 kg	4.30 kg	5.70 kg	6.90 kg	8.20 kg	10.70 kg	13.30 kg
Trio	2.90 kg	5.00 kg	7.10 kg	9.30 kg	11.40 kg	13.50 kg	18.00 kg	22.00 kg
Quatro	3.90 kg	7.00 kg	9.90 kg	12.50 kg	15.10 kg	18.30 kg	24.00 kg	29.70 kg
