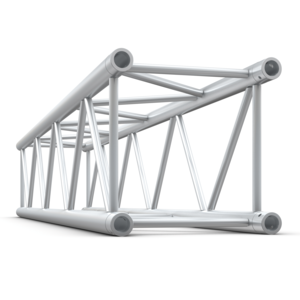

M390 - Medium duty truss with Regular & Heavy-Duty options

Available colors:
Code
QTL
Main Tube
48 x 3 mm
Braces
20 x 2 mm
Available Length
0,5 - 5 m
Size
388 x 388 mm
Span
20 m
M390 - Medium duty truss with Regular & Heavy-Duty options
M390 - Medium duty truss with Regular & Heavy-Duty options

Detailed information

Description

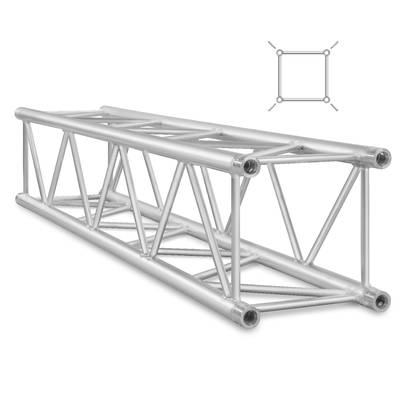

M390 is a larger format product line available in both a heavy duty "L" Range and regular duty "K" Range. It provides remarkable weight loading capabilities while fitting the needs of more substantial spans and booth designs such as concert stages, larger exhibit displays or any other types of indoor or outdoor stages. The M390 provides optimal truss support in every situation.
Call or e-mail us today for more information or to request a quote.

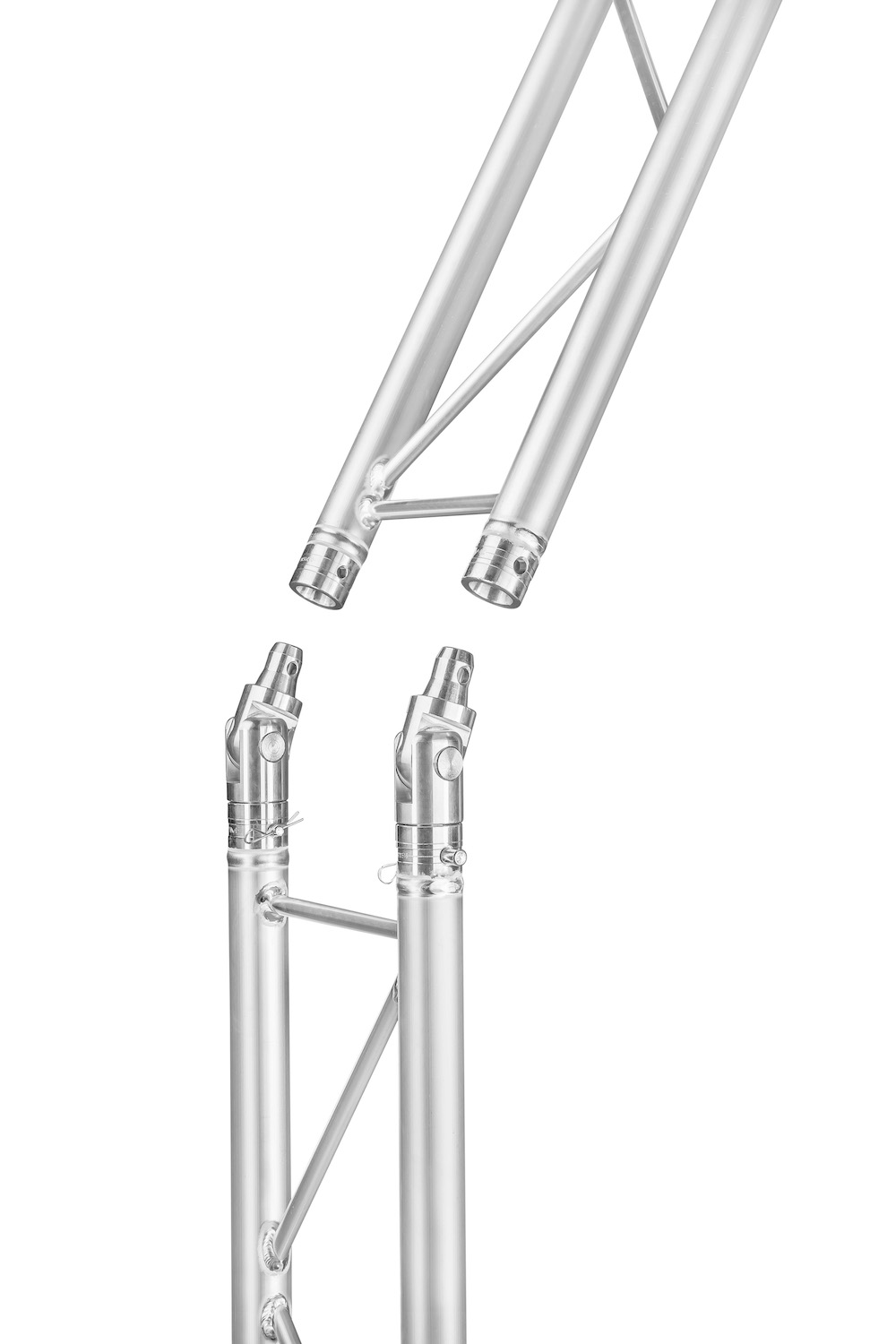

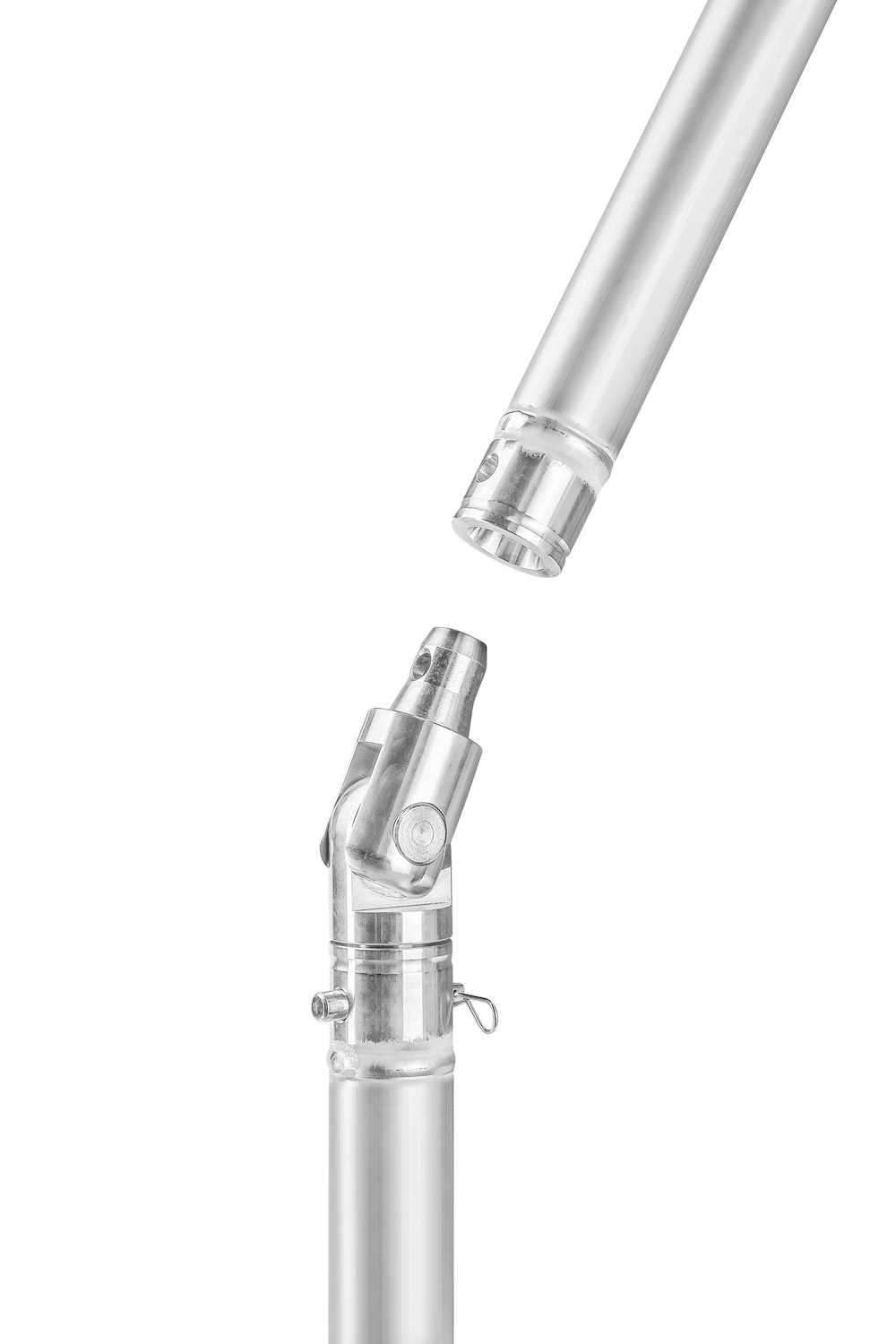

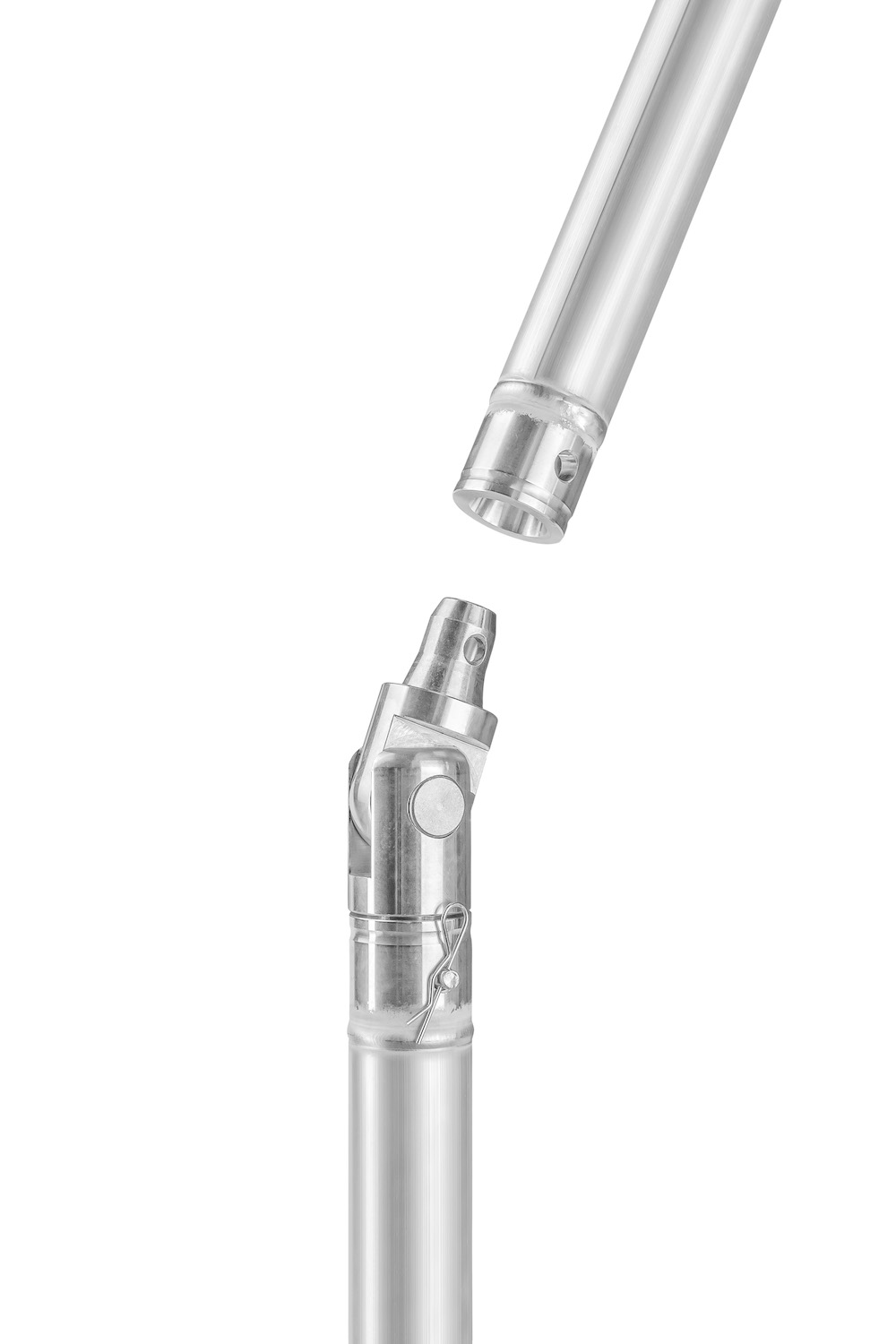

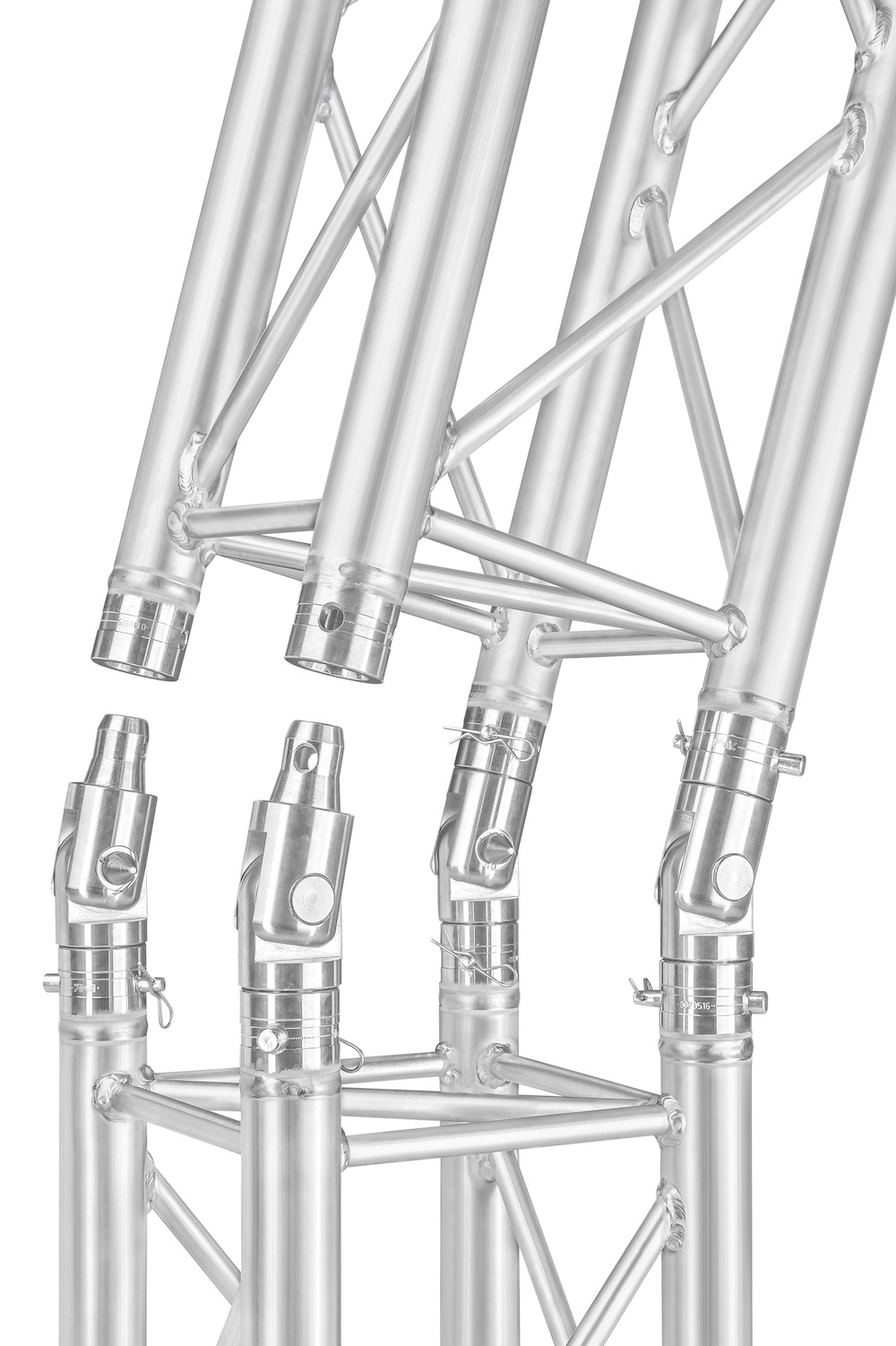

The M390 comes in two connection system versions – B, F for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.

Key benefits

  • Certified 48mm tube heavy-duty M390 Series truss range

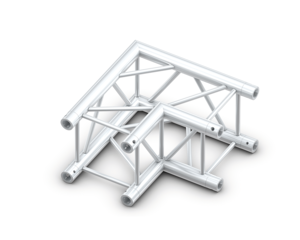

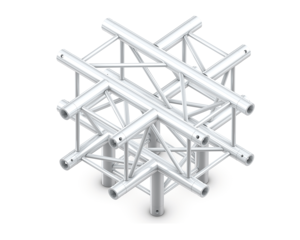

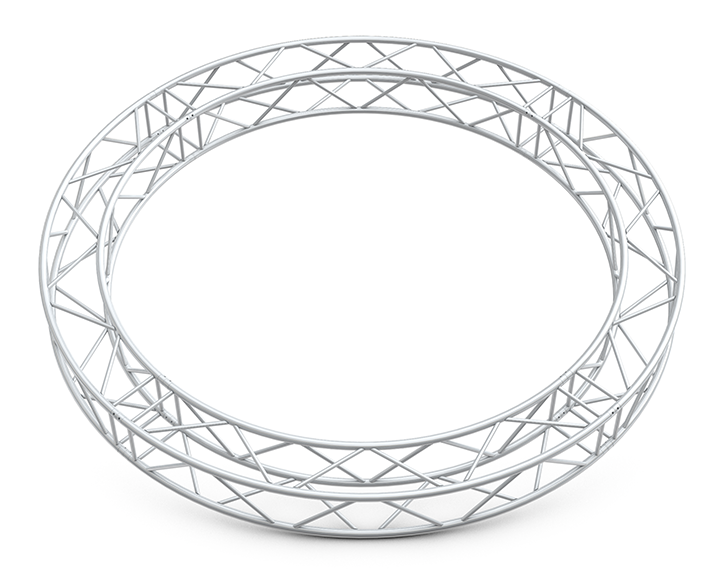

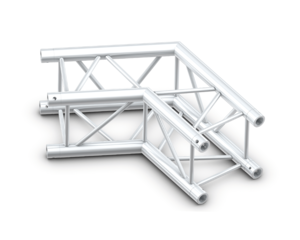

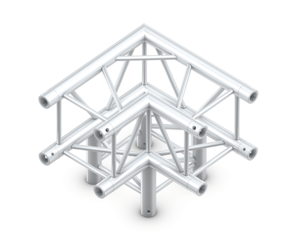

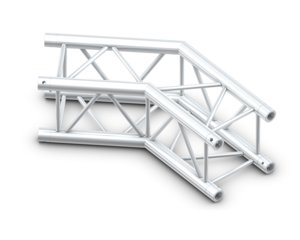

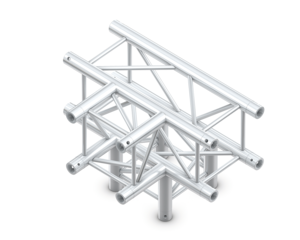

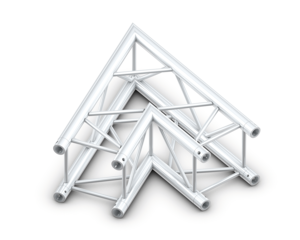

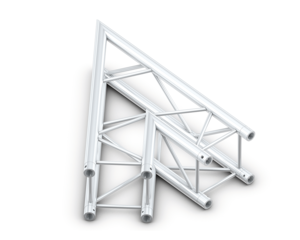

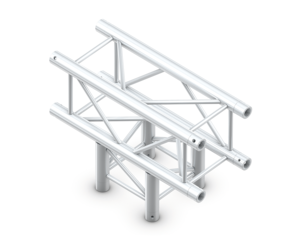

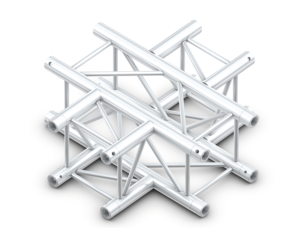

  • Custom lengths, junctions & curves available
  • Interior & exterior applications

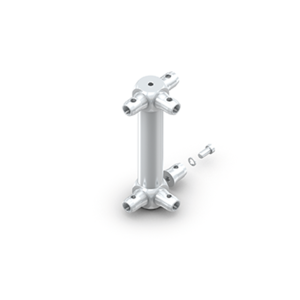

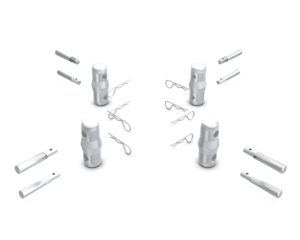

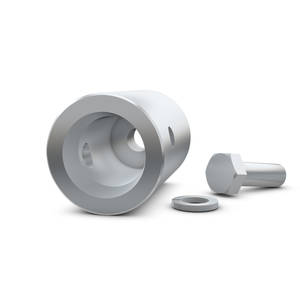

  • Connection kit supplied with every truss length & junction
  • Fast connection for quick, simple and secure assembly
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Great free-span & loading characteristics (upto 20m / 65.61 ft)
  • Powder coat colour finish available on request
M390 Regular - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m 5 m
Duo 1.70 kg 2.70 kg 3.70 kg 4.70 kg 5.80 kg 6.80 kg 8.90 kg 10.90 kg
Trio 3.10 kg 4.80 kg 7.10 kg 8.50 kg 10.10 kg 12.90 kg 16.20 kg 19.80 kg
Quatro 4.10 kg 6.40 kg 9.10 kg 11.70 kg 13.90 kg 17.00 kg 21.40 kg 26.40 kg
M390 Heavy Duty - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m 5 m
Duo 1.90 kg 3.30 kg 4.50 kg 6.00 kg 7.30 kg 8.60 kg 11.40 kg 14.10 kg
Trio 3.40 kg 5.50 kg 7.90 kg 10.50 kg 12.70 kg 15.10 kg 20.50 kg 25.00 kg
Quatro 4.50 kg 7.60 kg 10.80 kg 14.00 kg 17.10 kg 20.30 kg 26.40 kg 33.00 kg
