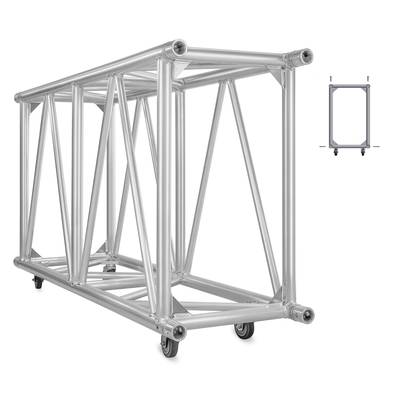

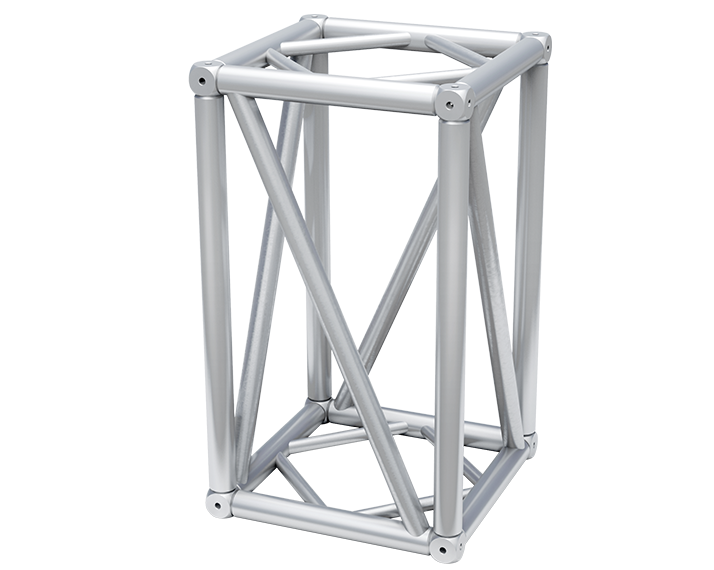

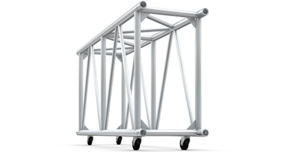

M950 - Ultra High Capacity truss with free-span up to 40m

Available colors:
Code
RTT, RTTH
Main Tube
60 x 6 mm
Braces
RTT: 32 x 3 mm
RTTH: 48 x 3 mm
Available Length
1 - 3 m
Size
580 x 1000 mm
Span
42 m
M950 - Ultra High Capacity truss with free-span up to 40m
M950 - Ultra High Capacity truss with free-span up to 40m

Detailed information

Description

If you require maximum loading specifications and free-span characteristics for your temporary or permanent installations, look no further than the Milos M950 truss system. M950 is the newest and largest Milos truss system.
Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Newly heavy duty RTTH available with up to 50% better SWL
  • User friendly taper pin hole orientation for ease of assembly
  • Ultra-high capacity M950 series truss range
  • Fixed rectangular or compact folding version available
  • Great free-span & loading characteristics (RTT upto 40m / 131.23 ft)
  • Great free-span & loading characteristics (RTTH upto 42m / 137.79 ft)
  • Connection kit supplied with every truss length
  • Super-size connical connection for maximum rigidity

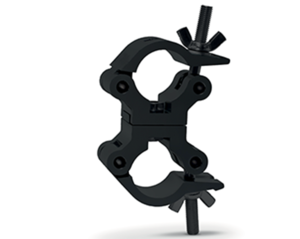

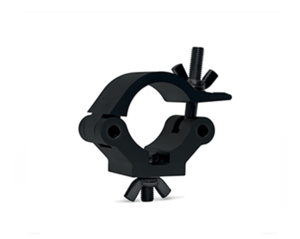

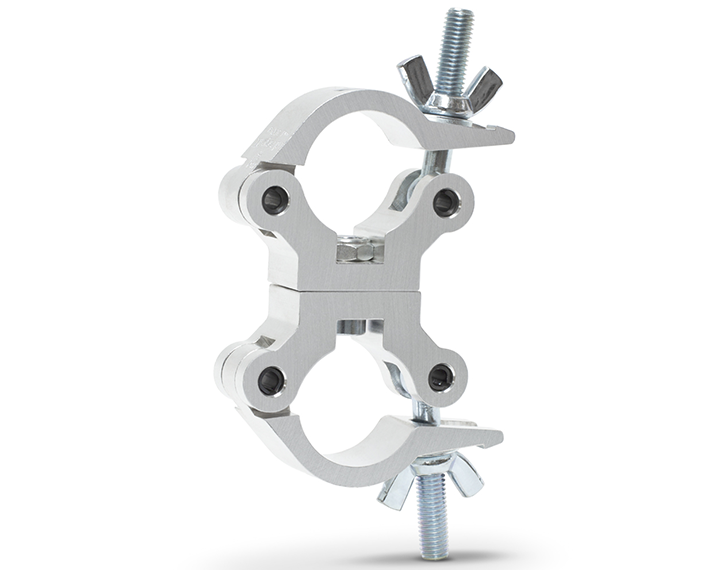

  • Cell clamp 300 series compatible
  • Transit wheels fitted for ease of transportation & setup
  • Powder coat colour finish available on request
M950 - ( RTT, RTTH) Standard lengths and weights available
  1 m 1.2 m 2 m 2.4 m 2.5 m 3 m  4 m
RTT 30.70 kg 34.30 kg 51.90 kg 56.80 kg   71.70 kg
RTTH 32.00 kg 36.00kg 55.00 kg 60.00kg 61.20 kg 76.10 kg 98.50 kg
